Toyota Tacoma (2015-2018) Service Manual: Components

COMPONENTS

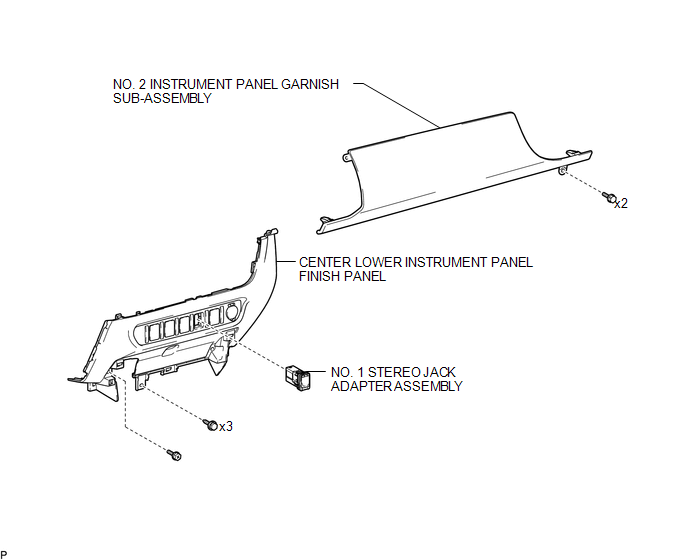

ILLUSTRATION

Removal
Stereo Jack Adapter Assembly
...

Removal
REMOVAL PROCEDURE 1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY RH (See page ) 2. REMOVE LOWER INSTRUMENT PANEL ASSEMBLY (See page ) 3. REMOVE AIR CONDITIONING CONTROL ASSEMBLY ...
