Toyota Tacoma 2015-2018 Service Manual: Headlight Relay

Inspection

INSPECTION

PROCEDURE

1. INSPECT HEADLIGHT RELAY

(a) Check the resistance.

(a) Check the resistance.

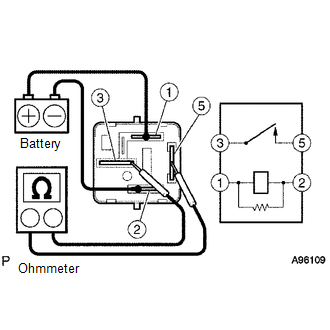

(1) Using an ohmmeter, measure the resistance between the terminals.

Standard:

Tester Connection

Specified Condition

3-5

10 kΩ or higher

3-5

Below 1 Ω

(When battery voltage applied to terminals 1 and 2)

If the result is not as specified, replace the headlight relay.
