Toyota Tacoma (2015-2018) Service Manual: Disposal
DISPOSAL
PROCEDURE
1. DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY
(a) Fully extend the shock absorber piston rod, and fix it at an angle in a vise or similar tool.

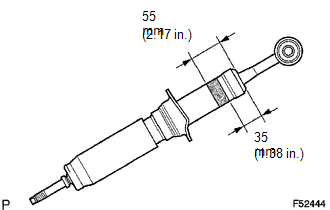

(b) Using a drill or similar tool, slowly make a hole in the shaded area shown in the illustration, and discharge the gas inside.
CAUTION:
- The gas is colorless, odorless and harmless.
- Since the discharged gas may cause chips to scatter, cover the drill with a shop rag when making the hole.
