Toyota Tacoma (2015-2018) Service Manual: Cursor or Map Rotates when Vehicle Stopped

Toyota Tacoma (2015-2018) Service Manual / Navigation / Multi Info Display / Navigation System / Cursor or Map Rotates when Vehicle Stopped

PROCEDURE

1.	CHECK CONDITION

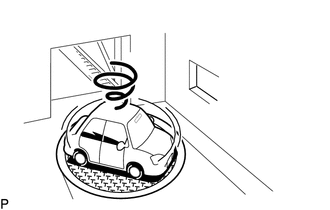

(a) Check with the customer if the vehicle has been turned by a turntable.

OK:

Vehicle has not been turned by a turntable.

HINT:

If the vehicle is turned on a turntable with the ignition switch ON, the system may store the angular velocity. As a result, the vehicle position cursor may deviate. In this case, the vehicle position cursor will return to normal by turning the ignition switch off and back to ON again with the vehicle completely stopped.

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

TURN IGNITION SWITCH TO ON WHEN VEHICLE IS COMPLETELY STOPPED
