Toyota Tacoma (2005–2015) Owners Manual: Manual transmission
■ Shifting the shift lever

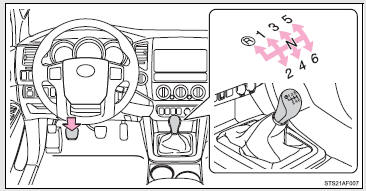

6-speed models
Fully depress the clutch pedal before operating the shift lever, and then release it slowly.

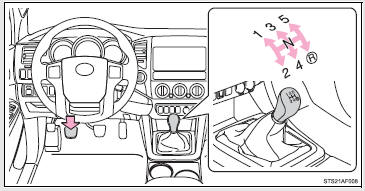

5-speed models
Fully depress the clutch pedal before operating the shift lever, and then release it slowly.
■Maximum allowable speed
Observe the following maximum allowable speeds in each gear when maximum acceleration is necessary.

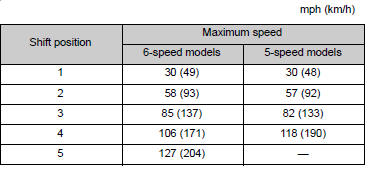

2WD models except PreRunner

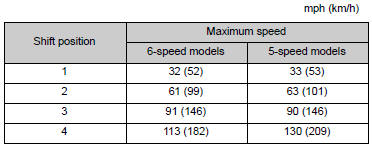

PreRunner

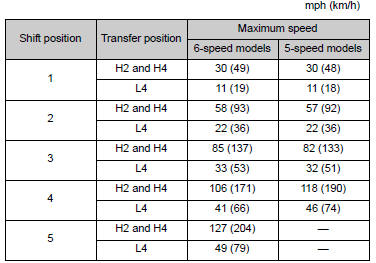

4WD models
■Reverse warning buzzer (6-speed models only)
When shifting into R, a buzzer will sound to inform the driver that the shift lever is in R.
Automatic transmission
Select a shift position appropriate for the driving conditions.
■ Shifting the shift lever
5-speed models
While the engine switch is on, depress
the brake pedal and move the shift lever ...
Turn signal lever
Right turn
Left turn
Move and hold the lever partway to
signal a lane change.
The right hand signal will flash until you release the lever.
Move and hold the lever partway
to signal a la ...
