Toyota Tacoma (2015-2018) Service Manual: Camshaft

Components

COMPONENTS

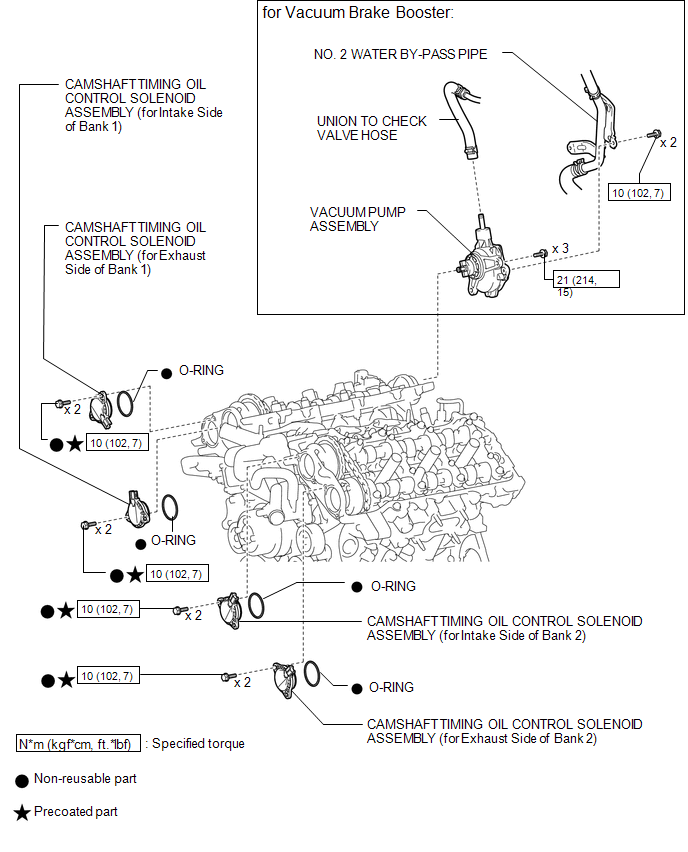

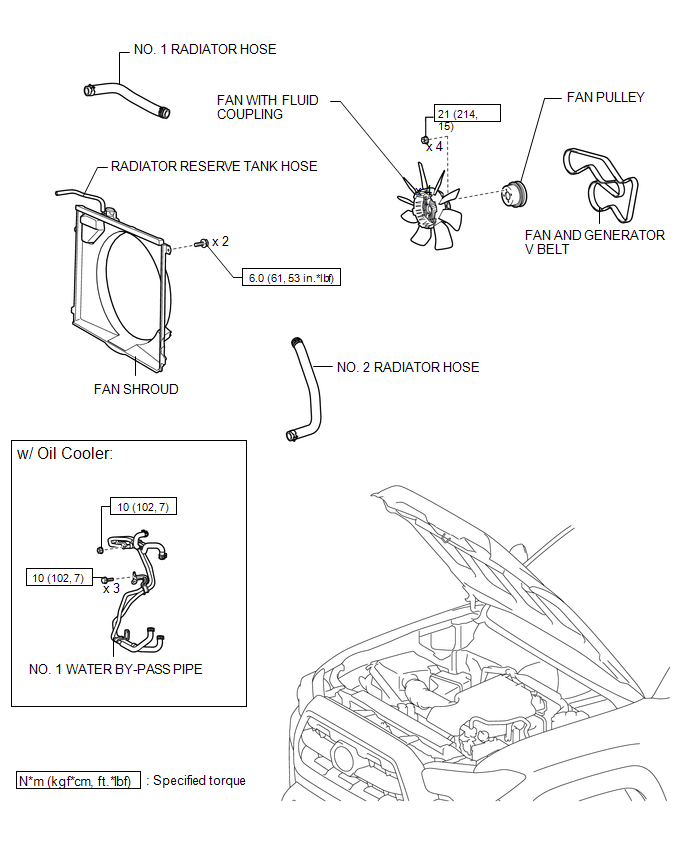

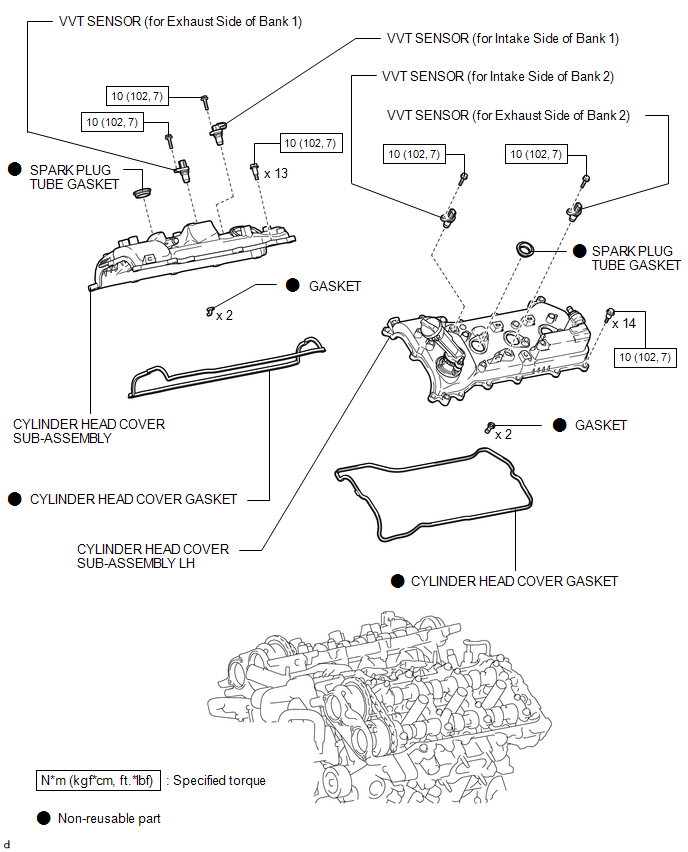

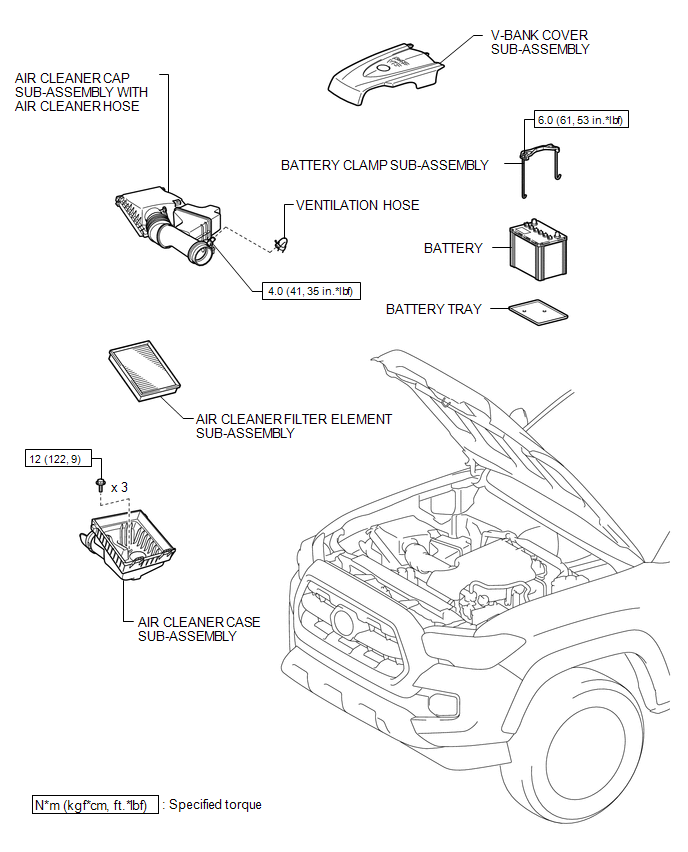

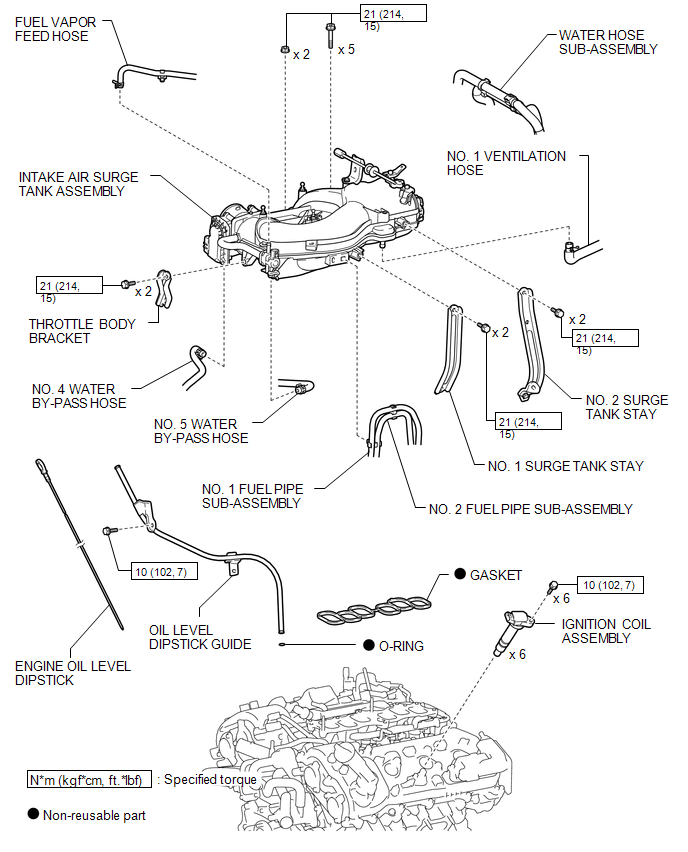

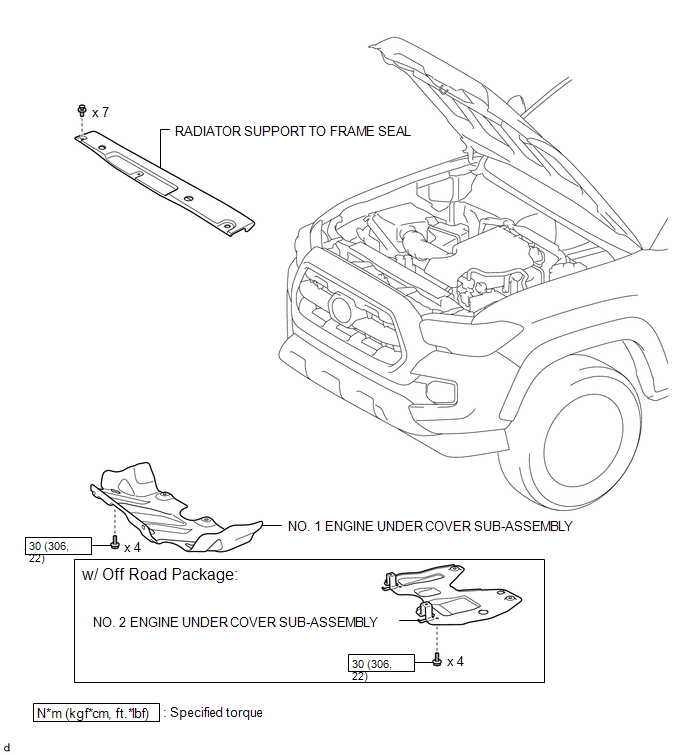

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

*1

FUEL PUMP ASSEMBLY

*2

FUEL PUMP LIFTER ASSEMBLY

*3

FUEL PUMP LIFTER GUIDE

*4

FUEL PUMP SPACER GASKET

*5

NO. 1 FUEL PIPE SUB-ASSEMBLY

*6

FUEL TUBE SUB-ASSEMBLY

*7

NO. 1 FUEL TUBE SUB-ASSEMBLY

*8

NO. 2 FUEL TUBE SUB-ASSEMBLY

*9

O-RING

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with union nut wrench

Non-reusable part

-

-

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

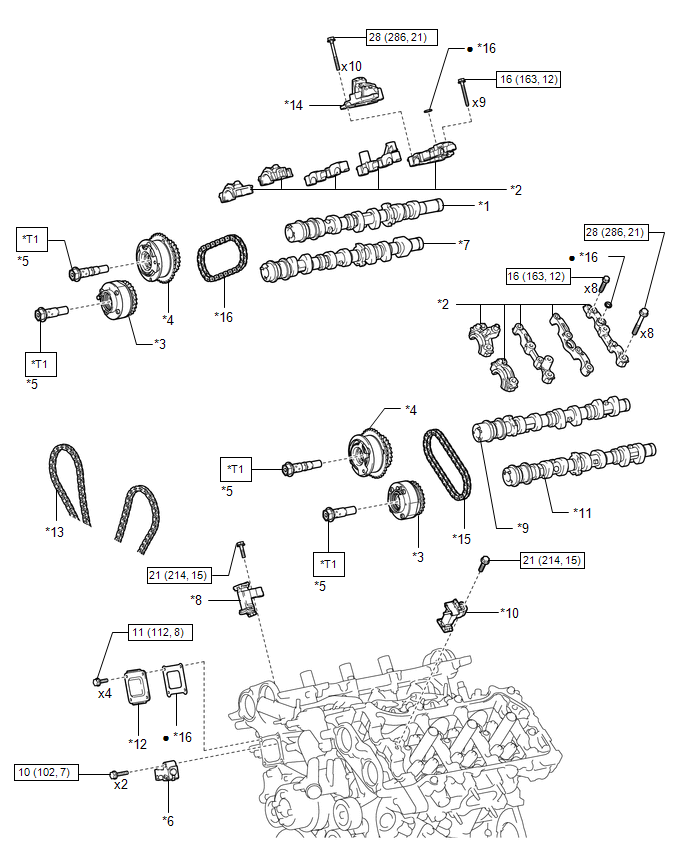

*1

CAMSHAFT

*2

CAMSHAFT BEARING CAP

*3

CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

*4

CAMSHAFT TIMING GEAR ASSEMBLY

*5

CAMSHAFT TIMING GEAR BOLT

*6

NO. 1 CHAIN TENSIONER ASSEMBLY

*7

NO. 2 CAMSHAFT

*8

NO. 2 CHAIN TENSIONER ASSEMBLY

*9

NO. 3 CAMSHAFT

*10

NO. 3 CHAIN TENSIONER ASSEMBLY

*11

NO. 4 CAMSHAFT

*12

TIMING CHAIN COVER PLATE

*13

CHAIN SUB-ASSEMBLY

*14

FUEL PUMP LIFTER HOUSING

*15

NO. 2 CHAIN SUB-ASSEMBLY

*16

GASKET

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

*T1

Type A: 120 N*m (1224 kgf*cm, 89 ft.*lbf)

Type B: 95 N*m (969 kgf*cm, 70 ft.*lbf)

-

-

2gr-fks Engine Mechanical
...

Cylinder Block
...
