Opel Insignia B 2018-2023 Owners Manual: Instrument Panel

Opel Insignia B 2018-2023 Owners Manual / In Brief / Instrument Panel

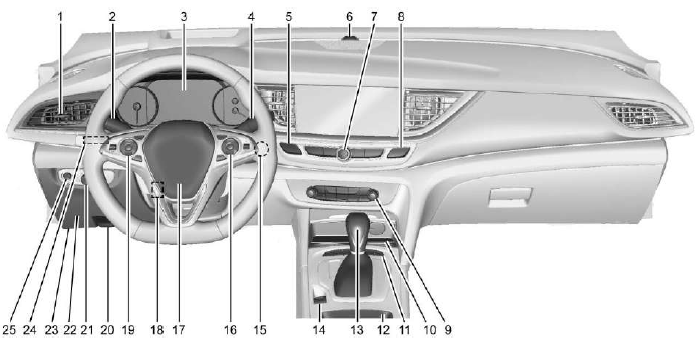

Instrument Panel Overview

  1. Air Vents
  2. Turn and Lane-Change Signals
  3. Instrument Cluster
    Driver Information Center (DIC) Display
  4. Windshield Wiper/Washer
  5. Hazard Warning Flashers
  6. Light Sensor
  7. Infotainment
  8. Traction Control/Electronic Stability Control
  9. Dual Automatic Climate Control System
  10. Transmitter Pocket
  11. Lane Keep Assist (LKA) Parking Assist Button (If Equipped)
    Selective Ride Control (GS Models Only)
  12. Wireless Charging
  13. Shift Lever
  14. Electric Parking Brake
  15. ENGINE START/STOP Button (Out of View)
  16. Steering Wheel Controls Driver Information Center (DIC) Controls
  17. Horn
  18. Steering Wheel Adjustment
  19. Cruise Control
    Adaptive Cruise Control Forward Collision Alert (FCA) System
    Heated Steering Wheel
  20. Hood Release
  21. Exterior Lamp Controls
  22. Instrument Panel Fuse Block Cover
  23. Data Link Connector (DLC) (Out of View)
  24. Head-Up Display (HUD)
  25. Instrument Panel Illumination Control
In Brief
...

Initial Drive Information
Stop/Start System The vehicle may be equipped with a fuel saving Stop/Start system to shut off the engine and help conserve fuel. When the brakes are applied and the vehicle is at a complete stop, th ...
