Toyota Tacoma (2015-2018) Service Manual: Adjustment
ADJUSTMENT
CAUTION / NOTICE / HINT
NOTICE:
For vehicles equipped with VSC, if the wheel alignment has been adjusted, and if suspension or underbody components have been removed/installed or replaced, be sure to perform the following initialization procedure in order for the system to function normally:
Perform zero point calibration of the yaw rate and acceleration sensor and test mode inspection.
PROCEDURE
1. INSPECT TIRES
Click here .gif)
2. MEASURE VEHICLE HEIGHT
NOTICE:
- Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
- Be sure to perform measurement on a level surface.
- Inspect while the vehicle is unloaded.
- The standard value shown here is a value that is used for adjusting the wheel alignment and does not indicate the height of an actual vehicle.
(a) Bounce the vehicle up and down at the corners to stabilize the suspension.
(b) Measure the vehicle height.

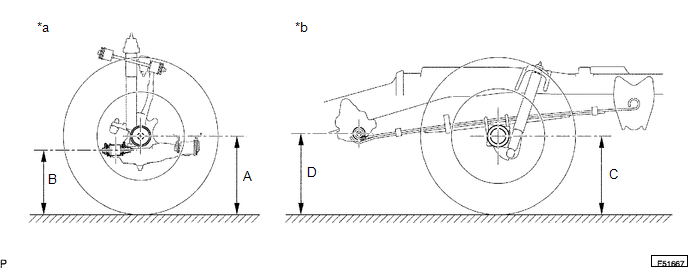

Text in Illustration
|
*a |
Front Side |
*b |
Rear Side |
Measuring points:
A
Ground clearance of front wheel center
B
Ground clearance of adjustment cam bolt center (front side)
C
Ground clearance of rear wheel center
D
Ground clearance of rear leaf spring front side bush center
Vehicle Height (Unloaded Vehicle):
|
Vehicle Model |
Tire Size |
A - B |
C - D |
|---|---|---|---|
|
TRN245L-CRTSKA |
P245/75R16 |
68 mm (2.68 in.) |
-43 mm (-1.69 in.) |
|
TRN245L-CRTSKA (FIRM SUSPENSION) |
P245/75R16 |
69 mm (2.72 in.) |
-51 mm (-2.01 in.) |
|
GRN305L-CRFSHA |
P245/75R16 |
65 mm (2.56 in.) |
-38 mm (-1.50 in.) |
|
GRN305L-CRFSHA |
P265/60R18 |
65 mm (2.56 in.) |
-38 mm (-1.50 in.) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
P245/75R16 |
65 mm (2.56 in.) |
-45 mm (-1.77 in.) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
P265/60R18 |
65 mm (2.56 in.) |
-45 mm (-1.77 in.) |
|
GRN305L-CRFSHA |
265/70R16 |
66 mm (2.60 in.) |
-40 mm (-1.57 in.) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
265/70R16 |
67 mm (2.64 in.) |
-48 mm (-1.89 in.) |
|
GRN305L-CRFSHA |
P265/65R17 |
65 mm (2.56 in.) |
-38 mm (-1.50 in.) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
P265/65R17 |
65 mm (2.56 in.) |
-46 mm (-1.81 in.) |
|
GRN305L-CRTSHA |
P245/75R16 |
64 mm (2.52 in.) |
-40 mm (-1.57 in.) |
|
GRN305L-CRTSHA |
P265/60R18 |
64 mm (2.52 in.) |
-40 mm (-1.57 in.) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
P245/75R16 |
64 mm (2.52 in.) |
-48 mm (-1.89 in.) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
P265/60R18 |
64 mm (2.52 in.) |
-48 mm (-1.89 in.) |
|
GRN305L-CRTSHA |
265/70R16 |
65 mm (2.56 in.) |
-42 mm (-1.65 in.) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
265/70R16 |
66 mm (2.60 in.) |
-50 mm (-1.97 in.) |
|
GRN305L-CRTSHA |
P265/65R17 |
64 mm (2.52 in.) |
-40 mm (-1.57 in.) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
P265/65R17 |
64 mm (2.52 in.) |
-48 mm (-1.89 in.) |
|
GRN305L-PRFSHA |
P245/75R16 |
64 mm (2.52 in.) |
-32 mm (-1.26 in.) |
|
GRN305L-PRFSHA |
P265/60R18 |
64 mm (2.52 in.) |
-32 mm (-1.26 in.) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
P245/75R16 |
65 mm (2.56 in.) |
-40 mm (-1.57 in.) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
P265/60R18 |
65 mm (2.56 in.) |
-40 mm (-1.57 in.) |
|
GRN305L-PRFSHA |
265/70R16 |
65 mm (2.56 in.) |
-34 mm (-1.34 in.) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
265/70R16 |
66 mm (2.60 in.) |
-41 mm (-1.61 in.) |
|
GRN305L-PRFSHA |
P265/65R17 |
64 mm (2.52 in.) |
-32 mm (-1.26 in.) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
P265/65R17 |
65 mm (2.56 in.) |
-40 mm (-1.57 in.) |
|
GRN305L-PRTSHA |
P245/75R16 |
65 mm (2.56 in.) |
-33 mm (-1.30 in.) |
|
GRN305L-PRTSHA |
P265/60R18 |
65 mm (2.56 in.) |
-33 mm (-1.30 in.) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
66 mm (2.60 in.) |
-41 mm (-1.61 in.) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
P265/60R18 |
66 mm (2.60 in.) |
-41 mm (-1.61 in.) |
|
GRN305L-PRTSHA |
265/70R16 |
66 mm (2.60 in.) |
-34 mm (-1.34 in.) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
66 mm (2.60 in.) |
-42 mm (-1.65 in.) |
|
GRN305L-PRTSHA |
P265/65R17 |
65 mm (2.56 in.) |
-33 mm (-1.30 in.) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
66 mm (2.60 in.) |
-41 mm (-1.61 in.) |
|
GRN310L-PRTSHA |
P245/75R16 |
64 mm (2.52 in.) |
-34 mm (-1.34 in.) |
|
GRN310L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
65 mm (2.56 in.) |
-42 mm (-1.65 in.) |
|
GRN310L-PRTSHA |
265/70R16 |
64 mm (2.52 in.) |
-36 mm (-1.42 in.) |
|
GRN310L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
65 mm (2.56 in.) |
-44 mm (-1.73 in.) |
|
GRN310L-PRTSHA |
P265/65R17 |
64 mm (2.52 in.) |
-34 mm (-1.34 in.) |
|
GRN310L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
65 mm (2.56 in.) |
-42 mm (-1.65 in.) |
|
GRN305L-PRTSHA (for Mexico) |
P265/65R17 |
54 mm (2.13 in.) |
-43 mm (-1.69 in.) |
|
TRN265L-CRTSKA |
P245/75R16 |
63 mm (2.48 in.) |
-44 mm (-1.73 in.) |
|
TRN265L-CRTSKA (FIRM SUSPENSION) |
P245/75R16 |
63 mm (2.48 in.) |
-52 mm (-2.05 in.) |
|
TRN265-PRTSKA |
P245/75R16 |
67 mm (2.64 in.) |
-39 mm (-1.54 in.) |
|
TRN265-PRTSKA (FIRM SUSPENSION) |
P245/75R16 |
67 mm (2.64 in.) |
-47 mm (-1.85 in.) |
|
GRN325L-CRTSHA |
P245/75R16 |
66 mm (2.60 in.) |
-42 mm (-1.65 in.) |
|
GRN325L-CRTSHA |
P265/60R18 |
66 mm (2.60 in.) |
-42 mm (-1.65 in.) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
P245/75R16 |
67 mm (2.64 in.) |
-50 mm (-1.97 in.) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
P265/60R18 |
67 mm (2.64 in.) |
-50 mm (-1.97 in.) |
|
GRN325L-CRTSHA |
265/70R16 |
66 mm (2.60 in.) |
-45 mm (-1.77 in.) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
265/70R16 |
67 mm (2.64 in.) |
-52 mm (-2.05 in.) |
|
GRN325L-CRTSHA |
P265/65R17 |
66 mm (2.60 in.) |
-42 mm (-1.65 in.) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
P265/65R17 |
67 mm (2.64 in.) |
-50 mm (-1.97 in.) |
|
GRN325L-PRTSHA |
P245/75R16 |
65 mm (2.56 in.) |
-35 mm (-1.38 in.) |
|
GRN325L-PRTSHA |
P265/60R18 |
65 mm (2.56 in.) |
-35 mm (-1.38 in.) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
66 mm (2.60 in.) |
-43 mm (-1.69 in.) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
P265/60R18 |
66 mm (2.60 in.) |
-43 mm (-1.69 in.) |
|
GRN325L-PRTSHA |
265/70R16 |
66 mm (2.60 in.) |
-37 mm (-1.46 in.) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
66 mm (2.60 in.) |
-45 mm (-1.77 in.) |
|
GRN325L-PRTSHA |
P265/65R17 |
65 mm (2.56 in.) |
-35 mm (-1.38 in.) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
66 mm (2.60 in.) |
-42 mm (-1.65 in.) |
|
GRN330L-PRTSHA |
P245/75R16 |
62 mm (2.44 in.) |
-37 mm (-1.46 in.) |
|
GRN330L-PRTSHA |
P265/60R18 |
62 mm (2.44 in.) |
-37 mm (-1.46 in.) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
63 mm (2.48 in.) |
-45 mm (-1.77 in.) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
P265/60R18 |
63 mm (2.48 in.) |
-45 mm (-1.77 in.) |
|
GRN330L-PRTSHA |
265/70R16 |
65 mm (2.56 in.) |
-39 mm (-1.54 in.) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
65 mm (2.56 in.) |
-47 mm (-1.85 in.) |
|
GRN330L-PRTSHA |
P265/65R17 |
62 mm (2.44 in.) |
-37 mm (-1.46 in.) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
63 mm (2.48 in.) |
-45 mm (-1.77 in.) |
|
GRN325L-PRTSHA (for Mexico) |
P265/65R17 |
53 mm (2.09 in.) |
-41 mm (-1.61 in.) |
|
GRN325L-PRTLHA |
P265/60R18 |
64 mm (2.52 in.) |
-33 mm (-1.30 in.) |
|
GRN325L-PRTLHA |
P245/75R16 |
64 mm (2.52 in.) |
-33 mm (-1.30 in.) |
|
GRN325L-PRTLHA (FIRM SUSPENSION) |
P265/60R18 |
65 mm (2.56 in.) |
-41 mm (-1.61 in.) |
|
GRN325L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
65 mm (2.56 in.) |
-41 mm (-1.61 in.) |
|
GRN330L-PRTLHA |
P265/60R18 |
63 mm (2.48 in.) |
-36 mm (-1.42 in.) |
|
GRN330L-PRTLHA |
P245/75R16 |
63 mm (2.48 in.) |
-36 mm (-1.42 in.) |
|
GRN330L-PRTLHA (FIRM SUSPENSION) |
P265/60R18 |
64 mm (2.52 in.) |
-44 mm (-1.73 in.) |
|
GRN330L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
64 mm (2.52 in.) |
-44 mm (-1.73 in.) |
|
GRN305L-PRTLHA |
P265/60R18 |
65 mm (2.56 in.) |
-31 mm (-1.22 in.) |
|
GRN305L-PRTLHA |
P245/75R16 |
65 mm (2.56 in.) |
-31 mm (-1.22 in.) |
|
GRN305L-PRTLHA (FIRM SUSPENSION) |
P265/60R18 |
66 mm (2.60 in.) |
-40 mm (-1.57 in.) |
|
GRN305L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
66 mm (2.60 in.) |
-40 mm (-1.57 in.) |
|
GRN310L-PRTLHA |
P265/65R17 |
64 mm (2.52 in.) |
-34 mm (-1.34 in.) |
|
GRN310L-PRTLHA |
P245/75R16 |
64 mm (2.52 in.) |
-34 mm (-1.34 in.) |
|
GRN310L-PRTLHA (FIRM SUSPENSION) |
P265/65R17 |
65 mm (2.56 in.) |
-42 mm (-1.65 in.) |
|
GRN310L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
65 mm (2.56 in.) |
-42 mm (-1.65 in.) |
3. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
|

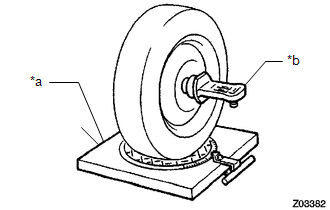

(a) Install the camber-caster-kingpin gauge and position the front wheel on the turning radius gauge. Text in Illustration
|
|
(b) Inspect the camber, caster and steering axis inclination.
Camber, Caster and Steering Axis Inclination (Unloaded Vehicle):
|
Vehicle Model |
Tire Size |
Camber |
Caster |
Steering Axis Inclination |
|---|---|---|---|---|
|
TRN245L-CRTSKA |
P245/75R16 |
0°29' +/- 45' (0.49° +/- 0.75°) |
1°57' +/- 45' (1.95° +/- 0.75°) |
11°58' +/- 45' (11.97° +/- 0.75°) |
|
TRN245L-CRTSKA (FIRM SUSPENSION) |
P245/75R16 |
0°29' +/- 45' (0.49° +/- 0.75°) |
1°46' +/- 45' (1.77° +/- 0.75°) |
11°58' +/- 45' (11.97° +/- 0.75°) |
|
GRN305L-CRFSHA |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°2' +/- 45' (2.03° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-CRFSHA |
P265/60R18 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°2' +/- 45' (2.03° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
1°51' +/- 45' (1.85° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
P265/60R18 |
0°32' +/- 45' (0.54° +/- 0.75°) |
1°51' +/- 45' (1.85° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-CRFSHA |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°59' +/- 45' (1.99° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°49' +/- 45' (1.81° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-CRFSHA |
P265/65R17 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°3' +/- 45' (2.05° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
P265/65R17 |
0°32' +/- 45' (0.54° +/- 0.75°) |
1°52' +/- 45' (1.87° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-CRTSHA |
P245/75R16 |
0°34' +/- 45' (0.56° +/- 0.75°) |
1°58' +/- 45' (1.96° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN305L-CRTSHA |
P265/60R18 |
0°34' +/- 45' (0.56° +/- 0.75°) |
1°58' +/- 45' (1.96° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°34' +/- 45' (0.56° +/- 0.75°) |
1°47' +/- 45' (1.78° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°34' +/- 45' (0.56° +/- 0.75°) |
1°47' +/- 45' (1.78° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN305L-CRTSHA |
265/70R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
1°54' +/- 45' (1.90° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
1°44' +/- 45' (1.73° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-CRTSHA |
P265/65R17 |
0°34' +/- 45' (0.56° +/- 0.75°) |
1°58' +/- 45' (1.96° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°34' +/- 45' (0.56° +/- 0.75°) |
1°47' +/- 45' (1.78° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN305L-PRFSHA |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°11' +/- 45' (2.19° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-PRFSHA |
P265/60R18 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°10' +/- 45' (2.17° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°1' +/- 45' (2.01° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
P265/60R18 |
0°32' +/- 45' (0.54° +/- 0.75°) |
1°59' +/- 45' (1.99° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-PRFSHA |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°9' +/- 45' (2.15° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°58' +/- 45' (1.97° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRFSHA |
P265/65R17 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°11' +/- 45' (2.19° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
P265/65R17 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°1' +/- 45' (2.01° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-PRTSHA |
P245/75R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°10' +/- 45' (2.17° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTSHA |
P265/60R18 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°10' +/- 45' (2.17° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°59' +/- 45' (1.99° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°59' +/- 45' (1.99° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTSHA |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°8' +/- 45' (2.13° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°58' +/- 45' (1.96° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTSHA |
P265/65R17 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°11' +/- 45' (2.19° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°1' +/- 45' (2.01° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN310L-PRTSHA |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°10' +/- 45' (2.17° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN310L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°1' +/- 45' (2.01° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN310L-PRTSHA |
265/70R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°8' +/- 45' (2.13° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN310L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
1°58' +/- 45' (1.97° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN310L-PRTSHA |
P265/65R17 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°10' +/- 45' (2.16° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN310L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2° +/- 45' (2.00° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN305L-PRTSHA (for Mexico) |
P265/65R17 |
0°29' +/- 45' (0.49° +/- 0.75°) |
2°14' +/- 45' (2.24° +/- 0.75°) |
11°58' +/- 45' (11.97° +/- 0.75°) |
|
TRN265L-CRTSKA |
P245/75R16 |
0°35' +/- 45' (0.58° +/- 0.75°) |
1°55' +/- 45' (1.92° +/- 0.75°) |
11°53' +/- 45' (11.88° +/- 0.75°) |
|
TRN265L-CRTSKA (FIRM SUSPENSION) |
P245/75R16 |
0°35' +/- 45' (0.58° +/- 0.75°) |
1°45' +/- 45' (1.75° +/- 0.75°) |
11°53' +/- 45' (11.88° +/- 0.75°) |
|
TRN265-PRTSKA |
P245/75R16 |
0°30' +/- 45' (0.50° +/- 0.75°) |
2°4' +/- 45' (2.06° +/- 0.75°) |
11°57' +/- 45' (11.95° +/- 0.75°) |
|
TRN265-PRTSKA (FIRM SUSPENSION) |
P245/75R16 |
0°30' +/- 45' (0.50° +/- 0.75°) |
1°53' +/- 45' (1.88° +/- 0.75°) |
11°57' +/- 45' (11.95° +/- 0.75°) |
|
GRN325L-CRTSHA |
P245/75R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°58' +/- 45' (1.97° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-CRTSHA |
P265/60R18 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°58' +/- 45' (1.97° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°48' +/- 45' (1.80° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°48' +/- 45' (1.80° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-CRTSHA |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°54' +/- 45' (1.90° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°43' +/- 45' (1.72° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-CRTSHA |
P265/65R17 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°58' +/- 45' (1.96° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°47' +/- 45' (1.78° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-PRTSHA |
P245/75R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°10' +/- 45' (2.17° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-PRTSHA |
P265/60R18 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°10' +/- 45' (2.17° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°59' +/- 45' (1.99° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°59' +/- 45' (1.99° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-PRTSHA |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°6' +/- 45' (2.10° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°55' +/- 45' (1.92° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-PRTSHA |
P265/65R17 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°9' +/- 45' (2.15° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°31' +/- 45' (0.52° +/- 0.75°) |
1°58' +/- 45' (1.97° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN330L-PRTSHA |
P245/75R16 |
0°35' +/- 45' (0.58° +/- 0.75°) |
2°7' +/- 45' (2.11° +/- 0.75°) |
11°53' +/- 45' (11.88° +/- 0.75°) |
|
GRN330L-PRTSHA |
P265/60R18 |
0°35' +/- 45' (0.58° +/- 0.75°) |
2°5' +/- 45' (2.09° +/- 0.75°) |
11°53' +/- 45' (11.88° +/- 0.75°) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°35' +/- 45' (0.58° +/- 0.75°) |
1°57' +/- 45' (1.95° +/- 0.75°) |
11°53' +/- 45' (11.88° +/- 0.75°) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°35' +/- 45' (0.58° +/- 0.75°) |
1°56' +/- 45' (1.93° +/- 0.75°) |
11°53' +/- 45' (11.88° +/- 0.75°) |
|
GRN330L-PRTSHA |
265/70R1 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°5' +/- 45' (2.09° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
1°56' +/- 45' (1.93° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN330L-PRTSHA |
P265/65R17 |
0°35' +/- 45' (0.58° +/- 0.75°) |
2°7' +/- 45' (2.11° +/- 0.75°) |
11°53' +/- 45' (11.88° +/- 0.75°) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°35' +/- 45' (0.58° +/- 0.75°) |
1°57' +/- 45' (1.95° +/- 0.75°) |
11°53' +/- 45' (11.88° +/- 0.75°) |
|
GRN325L-PRTSHA (for Mexico) |
P265/65R17 |
0°31' +/- 45' (0.51° +/- 0.75°) |
2°16' +/- 45' (2.27° +/- 0.75°) |
11°57' +/- 45' (11.95° +/- 0.75°) |
|
GRN325L-PRTLHA |
P265/60R18 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°12' +/- 45' (2.20° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN325L-PRTLHA |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°13' +/- 45' (2.22° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN325L-PRTLHA (FIRM SUSPENSION) |
P265/60R18 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°2' +/- 45' (2.03° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN325L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°3' +/- 45' (2.05° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN330L-PRTLHA |
P265/60R18 |
0°34' +/- 45' (0.56° +/- 0.75°) |
2°10' +/- 45' (2.16° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN330L-PRTLHA |
P245/75R16 |
0°34' +/- 45' (0.56° +/- 0.75°) |
2°10' +/- 45' (2.16° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN330L-PRTLHA (FIRM SUSPENSION) |
P265/60R18 |
0°34' +/- 45' (0.56° +/- 0.75°) |
2° +/- 45' (2.00° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN330L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
0°34' +/- 45' (0.56° +/- 0.75°) |
2° +/- 45' (2.00° +/- 0.75°) |
11°54' +/- 45' (11.90° +/- 0.75°) |
|
GRN305L-PRTLHA |
P265/60R18 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°12' +/- 45' (2.20° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTLHA |
P245/75R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°13' +/- 45' (2.22° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTLHA (FIRM SUSPENSION) |
P265/60R18 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°1' +/- 45' (2.01° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN305L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
0°31' +/- 45' (0.52° +/- 0.75°) |
2°2' +/- 45' (2.03° +/- 0.75°) |
11°56' +/- 45' (11.93° +/- 0.75°) |
|
GRN310L-PRTLHA |
P265/65R17 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°10' +/- 45' (2.16° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN310L-PRTLHA |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2°10' +/- 45' (2.16° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN310L-PRTLHA (FIRM SUSPENSION) |
P265/65R17 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2° +/- 45' (2.00° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
|
GRN310L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
0°32' +/- 45' (0.54° +/- 0.75°) |
2° +/- 45' (2.00° +/- 0.75°) |
11°55' +/- 45' (11.91° +/- 0.75°) |
NOTICE:
- Inspect while the vehicle is unloaded.
- The tolerance for the difference between the left and right wheels is 0°30' (0.50°) or less for both the camber and caster.
If the steering axis inclination is not as specified after the camber and caster have been correctly adjusted, recheck the steering knuckle and front wheel for distortion and slack.

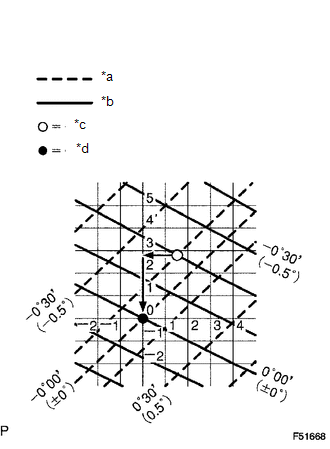

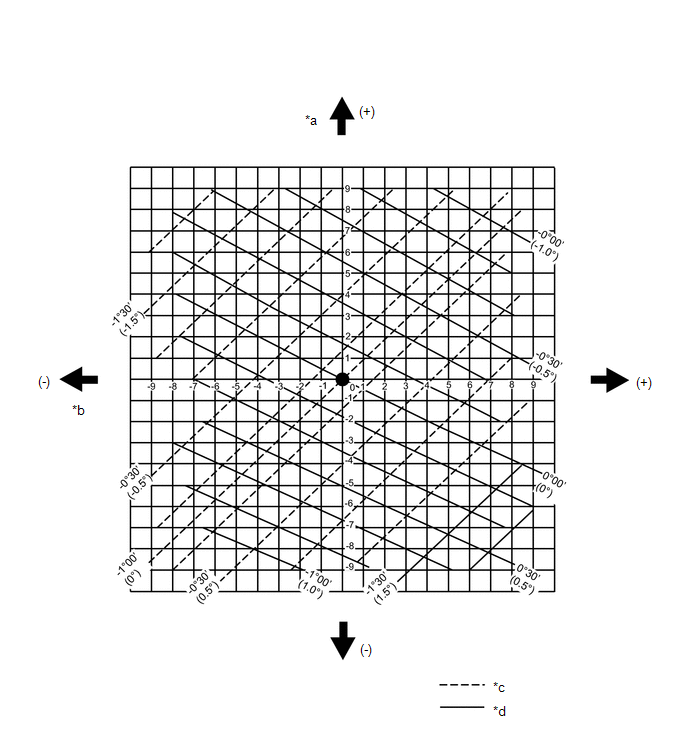

4. ADJUST CAMBER AND CASTER
NOTICE:
Inspect the toe-in after the camber has been adjusted.
(a) Loosen the nut and bolt.

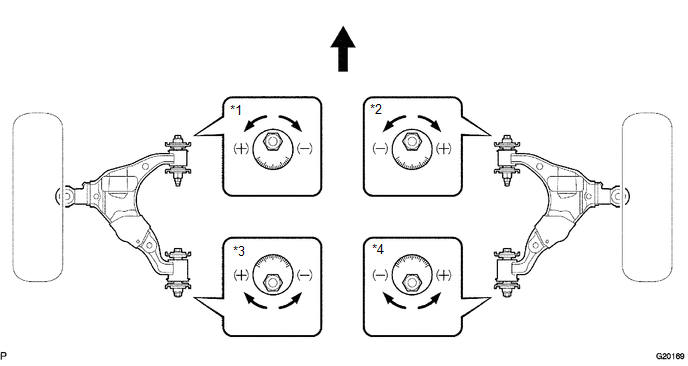

(b) Turn the front adjust cam and the rear adjust cam in both directions, and adjust the camber and caster to the center value.
HINT:
Try to adjust the camber and caster to the center value.
Text in Illustration
|
*1 |
Front Adjust Cam (LH) |
*2 |
Front Adjust Cam (RH) |
|
*3 |
Rear Adjust Cam (LH) |
*4 |
Rear Adjust Cam (RH) |
.png) |
Front of the Vehicle |
- |
- |
(c) How to read the adjustment chart (using examples).
Text in Illustration
|
*a |
Caster |
|
*b |
Camber |
|
*c |
Calculated Value |
|
*d |
0 Point |
(1) Measure the present alignment.
Camber:
0°17' (0.28°)
Caster:
1°28' (1.47°)
(2) Calculate the difference between the standard value (A) and the measured value (B) on the adjustment chart.
Standard value:
Camber
0°37' (0.61°)
Caster
1°38' (1.64°)
Formula
B - A = C
Camber
0°17' - (0°37') = -0°20'
Caster
1°28' - (1°38') = -0°10'
(3) As shown in the chart, read the distance from the marked point to the 0 point, and adjust the front and/or rear adjust cams accordingly.
Front adjust cam:
- (Shorter) 2.8
Rear adjust cam:
- (Shorter) 1.5
Text in Illustration
|
*a |
Front Cam Graduation |
*b |
Rear Cam Graduation |
|
*c |
Caster |
*d |
Camber |
5. INSPECT TOE-IN
(a) Bounce the vehicle up and down at the corners to stabilize the suspension.

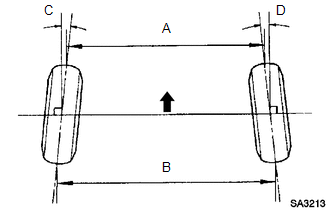

Text in Illustration
|
|
Front of the Vehicle |
Toe-in (Unloaded Vehicle):
|
Vehicle Model |
Tire Size |
C + D |
B - A |
|---|---|---|---|
|
TRN245L-CRTSKA |
P245/75R16 |
0°03' +/- 0°10' (0.060° +/- 0.161°) |
0.74 +/- 2 mm (0.029 +/- 0.08 in.) |
|
TRN245L-CRTSKA (FIRM SUSPENSION) |
P245/75R16 |
0°03' +/- 0°10' (0.060° +/- 0.161°) |
0.74 +/- 2 mm (0.029 +/- 0.08 in.) |
|
GRN305L-CRFSHA |
P245/75R16 |
0°06' +/- 0°10' (0.096° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN305L-CRFSHA |
P265/60R18 |
0°06' +/- 0°10' (0.094° +/- 0.159°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
P245/75R16 |
0°06' +/- 0°10' (0.096° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
P265/60R18 |
0°06' +/- 0°10' (0.094° +/- 0.159°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN305L-CRFSHA |
265/70R16 |
0°05' +/- 0°10' (0.083° +/- 0.159°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
265/70R16 |
0°05' +/- 0°10' (0.083° +/- 0.159°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-CRFSHA |
P265/65R17 |
0°06' +/- 0°10' (0.096° +/- 0.160°) |
1.20 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN305L-CRFSHA (FIRM SUSPENSION) |
P265/65R17 |
0°06' +/- 0°10' (0.096° +/- 0.160°) |
1.20 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN305L-CRTSHA |
P245/75R16 |
0°06' +/- 0°10' (0.108° +/- 0.161°) |
1.33 +/- 2 mm (0.052 +/- 0.08 in.) |
|
GRN305L-CRTSHA |
P265/60R18 |
0°06' +/- 0°10' (0.106° +/- 0.159°) |
1.33 +/- 2 mm (0.052 +/- 0.08 in.) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°06' +/- 0°10' (0.108° +/- 0.161°) |
1.33 +/- 2 mm (0.052 +/- 0.08 in.) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°06' +/- 0°10' (0.106° +/- 0.159°) |
1.33 +/- 2 mm (0.052 +/- 0.08 in.) |
|
GRN305L-CRTSHA |
265/70R16 |
0°06' +/- 0°10' (0.095° +/- 0.159°) |
1.19 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°06' +/- 0°10' (0.095° +/- 0.159°) |
1.19 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN305L-CRTSHA |
P265/65R17 |
0°06' +/- 0°10' (0.108° +/- 0.160°) |
1.35 +/- 2 mm (0.053 +/- 0.08 in.) |
|
GRN305L-CRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°06' +/- 0°10' (0.108° +/- 0.160°) |
1.35 +/- 2 mm (0.053 +/- 0.08 in.) |
|
GRN305L-PRFSHA |
P245/75R16 |
0°06' +/- 0°10' (0.096° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN305L-PRFSHA |
P265/60R18 |
0°06' +/- 0°10' (0.094° +/- 0.159°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
P245/75R16 |
0°06' +/- 0°10' (0.096° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
P265/60R18 |
0°06' +/- 0°10' (0.094° +/- 0.159°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN305L-PRFSHA |
265/70R16 |
0°05' +/- 0°10' (0.083° +/- 0.159°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
265/70R16 |
0°05' +/- 0°10' (0.083° +/- 0.159°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRFSHA |
P265/65R17 |
0°06' +/- 0°10' (0.096° +/- 0.159°) |
1.20 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN305L-PRFSHA (FIRM SUSPENSION) |
P265/65R17 |
0°06' +/- 0°10' (0.096° +/- 0.160°) |
1.20 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN305L-PRTSHA |
P245/75R16 |
0°05' +/- 0°10' (0.084° +/- 0.161°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTSHA |
P265/60R18 |
0°05' +/- 0°10' (0.082° +/- 0.159°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°05' +/- 0°10' (0.084° +/- 0.161°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°05' +/- 0°10' (0.082° +/- 0.159°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTSHA |
265/70R16 |
0°05' +/- 0°10' (0.083° +/- 0.159°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°05' +/- 0°10' (0.083° +/- 0.159°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTSHA |
P265/65R17 |
0°05' +/- 0°10' (0.084° +/- 0.160°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°05' +/- 0°10' (0.084° +/- 0.160°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN310L-PRTSHA |
P245/75R16 |
0°06' +/- 0°10' (0.096° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN310L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°06' +/- 0°10' (0.096° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN310L-PRTSHA |
265/70R16 |
0°06' +/- 0°10' (0.096° +/- 0.159°) |
1.20 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN310L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°06' +/- 0°10' (0.096° +/- 0.159°) |
1.20 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN310L-PRTSHA |
P265/65R17 |
0°06' +/- 0°10' (0.096° +/- 0.161°) |
1.20 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN310L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°06' +/- 0°10' (0.096° +/-0.161°) |
1.20 +/- 2 mm (0.047 +/- 0.08 in.) |
|
GRN305L-PRTSHA (for Mexico) |
P265/65R17 |
0°04' +/- 0°10' (0.074° +/- 0.160°) |
0.93 +/- 2 mm (0.037 +/- 0.08 in.) |
|
TRN265L-CRTSKA |
P245/75R16 |
0°07' +/- 0°10' (0.119° +/- 0.160°) |
1.48 +/- 2 mm (0.058 +/- 0.08 in.) |
|
TRN265L-CRTSKA (FIRM SUSPENSION) |
P245/75R16 |
0°07' +/- 0°10' (0.119° +/- 0.160°) |
1.48 +/- 2 mm (0.058 +/- 0.08 in.) |
|
TRN265-PRTSKA |
P245/75R16 |
0°04' +/- 0°10' (0.071° +/- 0.161°) |
0.89 +/- 2 mm (0.035 +/- 0.08 in.) |
|
TRN265-PRTSKA (FIRM SUSPENSION) |
P245/75R16 |
0°04' +/- 0°10' (0.071° +/- 0.161°) |
0.89 +/- 2 mm (0.035 +/- 0.08 in.) |
|
GRN325L-CRTSHA |
P245/75R16 |
0°05' +/- 0°10' (0.083° +/- 0.161°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-CRTSHA |
P265/60R18 |
0°05' +/- 0°09' (0.082° +/- 0.158°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°05' +/- 0°10' (0.082° +/- 0.160°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°05' +/- 0°09' (0.082° +/- 0.158°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-CRTSHA |
265/70R16 |
0°05' +/- 0°09' (0.083° +/- 0.158°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°05' +/- 0°09' (0.083° +/- 0.158°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-CRTSHA |
P265/65R17 |
0°05' +/- 0°10' (0.084° +/- 0.160°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-CRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°05' +/- 0°10' (0.084° +/- 0.160°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-PRTSHA |
P245/75R16 |
0°05' +/- 0°10' (0.083° +/- 0.161°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-PRTSHA |
P265/60R18 |
0°05' +/- 0°09' (0.082° +/- 0.158°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°05' +/- 0°10' (0.083° +/- 0.161°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°05' +/- 0°09' (0.082° +/- 0.158°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-PRTSHA |
265/70R16 |
0°05' +/- 0°09' (0.083° +/- 0.158°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°05' +/- 0°09' (0.083° +/- 0.158°) |
1.04 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-PRTSHA |
P265/65R17 |
0°05' +/- 0°10' (0.084° +/- 0.160°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN325L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°05' +/- 0°10' (0.084° +/- 0.160°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN330L-PRTSHA |
P245/75R16 |
0°07' +/- 0°10' (0.119° +/- 0.161°) |
1.48 +/- 2 mm (0.058 +/- 0.08 in.) |
|
GRN330L-PRTSHA |
P265/60R18 |
0°07' +/- 0°09' (0.117° +/- 0.158°) |
1.48 +/- 2 mm (0.058 +/- 0.08 in.) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
P245/75R16 |
0°07' +/- 0°10' (0.119° +/- 0.161°) |
1.48 +/- 2 mm (0.058 +/- 0.08 in.) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
P265/60R18 |
0°07' +/- 0°09' (0.117° +/- 0.158°) |
1.48 +/- 2 mm (0.058 +/- 0.08 in.) |
|
GRN330L-PRTSHA |
265/70R16 |
0°06' +/- 0°09' (0.094° +/- 0.158°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
265/70R16 |
0°06' +/- 0°09' (0.094° +/- 0.158°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN330L-PRTSHA |
P265/65R17 |
0°07' +/- 0°10' (0.120° +/- 0.160°) |
1.50 +/- 2 mm (0.059 +/- 0.08 in.) |
|
GRN330L-PRTSHA (FIRM SUSPENSION) |
P265/65R17 |
0°07' +/- 0°10' (0.120° +/- 0.160°) |
1.50 +/- 2 mm (0.059 +/- 0.08 in.) |
|
GRN325L-PRTSHA (for Mexico) |
P265/65R17 |
0°05' +/- 0°10' (0.088° +/- 0.160°) |
1.10 +/- 2 mm (0.043 +/- 0.08 in.) |
|
GRN325L-PRTLHA |
P265/60R18 |
0°06' +/- 0°09' (0.094° +/- 0.158°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN325L-PRTLHA |
P245/75R16 |
0°06' +/- 0°10' (0.095° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN325L-PRTLHA (FIRM SUSPENSION) |
P265/60R18 |
0°06' +/- 0°09' (0.094° +/- 0.158°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN325L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
0°06' +/- 0°10' (0.095° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN330L-PRTLHA |
P265/60R18 |
0°06' +/- 0°09' (0.106° +/- 0.158°) |
1.34 +/- 2 mm (0.053 +/- 0.08 in.) |
|
GRN330L-PRTLHA |
P245/75R16 |
0°06' +/- 0°10' (0.108° +/- 0.161°) |
1.34 +/- 2 mm (0.053 +/- 0.08 in.) |
|
GRN330L-PRTLHA (FIRM SUSPENSION) |
P265/60R18 |
0°06' +/- 0°09' (0.106° +/- 0.158°) |
1.34 +/- 2 mm (0.053 +/- 0.08 in.) |
|
GRN330L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
0°06' +/- 0°10' (0.108° +/- 0.161°) |
1.34 +/- 2 mm (0.053 +/- 0.08 in.) |
|
GRN305L-PRTLHA |
P265/60R18 |
0°05' +/- 0°10' (0.083° +/- 0.159°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTLHA |
P245/75R16 |
0°05' +/- 0°10' (0.085° +/- 0.161°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTLHA (FIRM SUSPENSION) |
P265/60R18 |
0°05' +/- 0°10' (0.083° +/- 0.159°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN305L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
0°05' +/- 0°10' (0.085° +/- 0.161°) |
1.05 +/- 2 mm (0.041 +/- 0.08 in.) |
|
GRN310L-PRTLHA |
P265/65R17 |
0°06' +/- 0°10' (0.095° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN310L-PRTLHA |
P245/75R16 |
0°06' +/- 0°10' (0.096° +/- 0.162°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN310L-PRTLHA (FIRM SUSPENSION) |
P265/65R17 |
0°06' +/- 0°10' (0.095° +/- 0.161°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
|
GRN310L-PRTLHA (FIRM SUSPENSION) |
P245/75R16 |
0°06' +/- 0°10' (0.096° +/- 0.162°) |
1.18 +/- 2 mm (0.046 +/- 0.08 in.) |
HINT:
Measure "B - A" only when "C + D" cannot be measured.
If the toe-in is not within the specified range, adjust it at the rack ends.

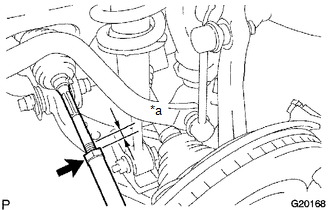

6. ADJUST TOE-IN
(a) Remove the rack boot set clips.
(b) Loosen the tie rod end lock nuts.
(c) Turn the right and left rack ends uniformly to adjust the toe-in to the center value.
|
(d) Make sure that the lengths of the right and left rack ends are the same. Text in Illustration
Standard difference: 0 +/- 1 mm (0 +/- 0.0394 in.) or less |
|
(e) Tighten the tie rod end lock nuts.
Torque:
56 N·m {566 kgf·cm, 41 ft·lbf}
(f) Place the boots on the seats and install the rear boot set clips.
HINT:
Make sure that the boots are not twisted.

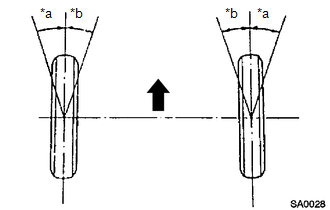

7. INSPECT WHEEL TURNING ANGLE
(a) Turn the steering wheel fully, and measure the turning angle.
Text in Illustration
|
*a |
Inside |
|
*b |
Outside |
|
|
Front of the Vehicle |
Wheel Turning Angle (Unloaded Vehicle):
|
Inside Wheel |
Outside Wheel (Reference) |
|---|---|
|
39.30°(37.30° to 40.30°) |
34.90°(32.90° to 35.90°) |
If the right and left turning angles of the inside and outside wheels are not within the specified ranges, check the right and left rack end lengths.
8. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION (for Hydraulic Brake Booster)
Click here
9. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION (for Vacuum Brake Booster)
Click here
Rear Leaf Spring
Components
COMPONENTS
ILLUSTRATION
Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE BUSH
(a) Fix the spring in a vise.
(b) Using a hack saw, cut both ends off the bushes.
(c) Us ...
Other materials:
Air Outlet Damper Position Sensor Circuit (B1433/33)
DESCRIPTION
This sensor detects the position of the mode damper and sends the appropriate
signals to the air conditioning amplifier assembly. The position sensor is built
into the No. 1 air conditioning radiator damper servo sub-assembly (for mode switching).
DTC No.
DTC ...
Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE STEERING GEAR OUTLET RETURN TUBE
(a) Using a union nut wrench, remove the steering gear outlet return tube.
2. REMOVE STEERING TURN PRESSURE TUBE
(a) Using a union nut wrench, remove the 2 pressure tubes.
(b) Remove the 4 O-rings from the pressure tubes.
3. ...
Transponder Chip Malfunction (B2793,B2794,B2797,B2798)
DESCRIPTION
DTC B2793 is stored when a malfunction is found in the key during key
code registration or a key code is not registered normally. Replace the
key if key code registration cannot be performed normally and this DTC is
output.
DTC B2794 is stored when a key with an i ...
