DESCRIPTION

The tire pressure warning valve and transmitters that are installed in the tire and wheel assemblies measure the tire pressure of each wheel. The measured values are transmitted to the tire pressure warning ECU and receiver in the vehicle as radio waves. The ECU compares the measured tire pressure values with the tire pressure threshold. When the measured tire pressure value is less than this threshold, the warning light in the combination meter assembly illuminates. The tire pressure warning ECU and receiver stores a DTC when the tire pressure warning valve and transmitter stops transmitting signals. The signals can be forcibly transmitted by releasing the tire pressure rapidly. The stored DTCs are cleared when signal transmission resumes.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Note

C2111/11

Transmitter ID1 Operation Stop

Tire pressure warning valve and transmitters stop transmitting signals

  • Tire pressure warning valve and transmitter
  • Tire pressure warning ECU and receiver

-

C2112/12

Transmitter ID2 Operation Stop

Tire pressure warning valve and transmitters stop transmitting signals

  • Tire pressure warning valve and transmitter
  • Tire pressure warning ECU and receiver

-

C2113/13

Transmitter ID3 Operation Stop

Tire pressure warning valve and transmitters stop transmitting signals

  • Tire pressure warning valve and transmitter
  • Tire pressure warning ECU and receiver

-

C2114/14

Transmitter ID4 Operation Stop

Tire pressure warning valve and transmitters stop transmitting signals

  • Tire pressure warning valve and transmitter
  • Tire pressure warning ECU and receiver

-

HINT:

It is necessary to perform the following procedure to identify the tire pressure warning valve and transmitter that is malfunctioning because it cannot be identified by the output DTC.

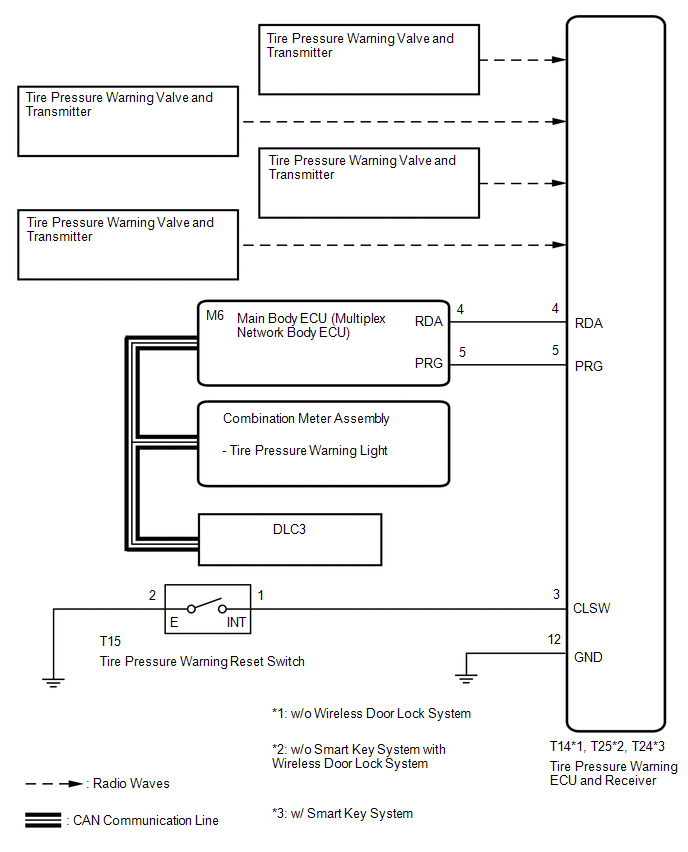

WIRING DIAGRAM

PROCEDURE

PROCEDURE

1.

PERFORM FORCED TRANSMISSION OF TRANSMITTER ID OF ALLWHEELS

(a) Set the tire pressure to the specified value (See page (b) Turn the ignition switch off. ).

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

(g) Check the values by referring to the table below

Tire Pressure Monitor

Tester Display

Measurement Item/Range

Normal Condition

Diagnostic Note

ID 1 Tire Inflation Pressure

ID1 tire inflation pressure/

min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm2, 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm2, 0 psi)

max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm2, 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/ cm2, 55 psi)

Actual tire inflation pressure

If N/A is displayed, data has not been received.*1

ID 2 Tire Inflation Pressure

ID2 tire inflation pressure/

min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm2, 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm2, 0 psi)

max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm2, 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/ cm2, 55 psi)

Actual tire inflation pressure

If N/A is displayed, data has not been received.*1

ID 3 Tire Inflation Pressure

ID3 tire inflation pressure/

min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm2, 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm2, 0 psi)

max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm2, 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/ cm2, 55 psi)

Actual tire inflation pressure

If N/A is displayed, data has not been received.*1

ID 4 Tire Inflation Pressure

ID4 tire inflation pressure/

min.: Absolute pressure (abs) / 0 kPa (0 kgf/cm2, 0 psi), Relative pressure (Gauge) / 0 kPa (0 kgf/cm2, 0 psi)

max.: Absolute pressure (abs) / 480 kPa (4.9 kgf/cm2, 70 psi), Relative pressure (Gauge) / 380 kPa (3.9 kgf/ cm2, 55 psi)

Actual tire inflation pressure

If N/A is displayed, data has not been received.*1

HINT:

*1: It may take a few minutes until the values are displayed. If the values are not displayed after a few minutes, perform troubleshooting according to the inspection procedure for DTCs C2121/21 to C2124/24 (See page (h) Rapidly reduce the tire pressure for each wheel at least 40 kPa (0.4 kgf/cm2, ).

(h) Rapidly reduce the tire pressure for each wheel at least 40 kPa (0.4 kgf/cm2, 5.8 psi) within 30 seconds.

(1) Check that each "ID Tire Inflation Pressure" value displayed on the Techstream has changed.

OK:

Each "ID Tire Inflation Pressure" value displayed on the Techstream changed to the actual tire inflation pressure value.

NOTICE:

  • It may take a few minutes until the values are displayed.
  • When an "ID Tire Inflation Pressure" value has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270 degrees. Then rapidly release the tire pressure and recheck the value.

(2) After confirming that all of the tire "ID Tire Inflation Pressure" values displayed on the Techstream have changed, set the tire pressure to the appropriate specified values.

HINT:

If an "ID Tire Inflation Pressure" value displayed on the Techstream has not changed after rechecking, inspect for another problem (See page ).

OK

END

NG

GO TO TRANSMITTER AND RECEIVER INSPECTION PROCEDURE
