Toyota Tacoma 2015-2018 Service Manual: Short in Driver Side Squib 2nd Step Circuit (B1810/53-B1813/53)

Toyota Tacoma 2015-2018 Service Manual / Supplemental Restraint Systems / Airbag System / Short in Driver Side Squib 2nd Step Circuit (B1810/53-B1813/53)

DESCRIPTION

The driver side squib 2nd step circuit consists of the airbag sensor assembly, the spiral cable with sensor sub-assembly and the horn button assembly.

The circuit signals the SRS to deploy when airbag deployment conditions are met.

These DTCs are set when a malfunction is detected in the driver side squib 2nd step circuit.

DTC No.

DTC Detecting Conditions

Trouble Areas

B1810/53

  • The airbag sensor assembly receives a line short circuit signal in the driver side squib 2nd step circuit for 2 seconds
  • Driver side squib 2nd step malfunction
  • Spiral cable with sensor sub-assembly malfunction
  • Airbag sensor assembly malfunction
  • Instrument panel wire
  • Spiral cable with sensor sub-assembly
  • Horn button assembly (Driver side squib 2nd step)
  • Airbag sensor assembly

B1811/53

  • The airbag sensor assembly receives an open circuit signal in the driver side squib 2nd step circuit for 2 seconds malfunction
  • Driver side squib 2nd step
  • Spiral cable with sensor sub-assembly malfunction
  • Airbag sensor assembly malfunction
  • Instrument panel wire
  • Spiral cable with sensor sub-assembly
  • Horn button assembly (Driver side squib 2nd step)
  • Airbag sensor assembly

B1812/53

  • The airbag sensor assembly receives a short circuit to ground signal in the driver side squib 2nd step circuit for 0.5 seconds
  • Driver side squib 2nd step malfunction
  • Spiral cable with sensor sub-assembly malfunction
  • Airbag sensor assembly malfunction
  • Instrument panel wire
  • Spiral cable with sensor sub-assembly
  • Horn button assembly (Driver side squib 2nd step)
  • Airbag sensor assembly

B1813/53

  • The airbag sensor assembly receives a short circuit to B+ signal in the driver side squib 2nd step circuit for 0.5 seconds
  • Driver side squib 2nd step malfunction
  • Spiral cable with sensor sub-assembly malfunction
  • Airbag sensor assembly malfunction
  • Instrument panel wire
  • Spiral cable with sensor sub-assembly
  • Horn button assembly (Driver side squib 2nd step)
  • Airbag sensor assembly

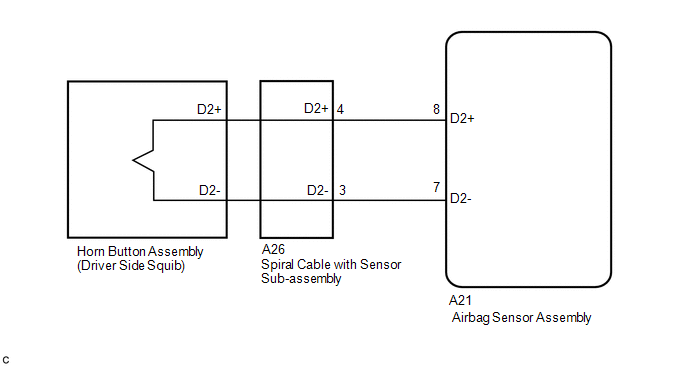

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (See page ).

HINT:

  • Perform the simulation method by selecting check mode (Signal Check) using the Techstream (See page After selecting check mode (Signal Check), perform the simulation method ).
  • After selecting check mode (Signal Check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city road or rough road (See page ). ).

PROCEDURE

1.

CHECK DTC

(a) Proceed to the appropriate step according to DTC readings.

(1) If using the Techstream (read the 5-digit DTCs): Using the Techstream, check for DTCs (See page Result ).

Result

Result

Proceed to

DTC B1810 is output.

A

DTC B1811 is output.

B

DTC B1812 is output.

C

DTC B1813 is output.

D

B

GO TO STEP 7

C

GO TO STEP 11

D

GO TO STEP 15

A

2.

CHECK CONNECTOR

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Check that the spiral cable with sensor sub-assembly connectors (on the horn button assembly side) are not damaged.

OK:

The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

NG

REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

OK

3.

CHECK CONNECTION OF CONNECTORS

(a) Check that the connectors are properly connected to the airbag sensor assembly and the spiral cable with sensor sub-assembly.

OK:

The connectors are properly connected.

NG

CONNECT CONNECTORS

OK

4.

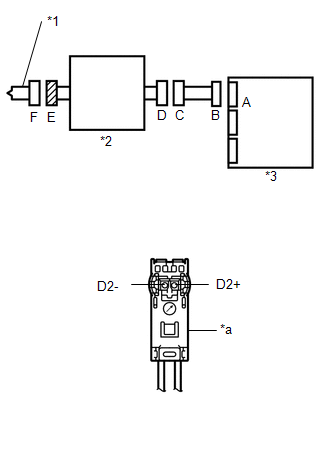

CHECK SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY (FOR SHORT)

(a) Disconnect the spiral cable with sensor sub-assembly connectors from the instrument panel wire and steering pad horn button assembly.

(b) Release the activation prevention mechanism built into connector D (See page (c) Measure the resistance according to the value(s) in the table below. ).

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D2+ - D2-

Always

1 MΩ or Higher

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Airbag Sensor Assembly

*a

Color: Black

NG

REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

OK

5.

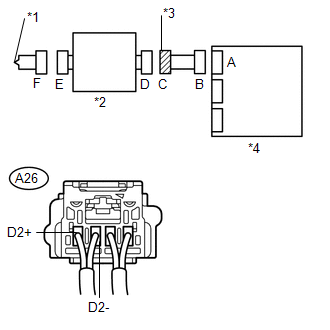

CHECK INSTRUMENT PANEL WIRE (FOR SHORT)

(a) Disconnect the instrument panel wire connector from the airbag sensor assembly.

(b) Release the activation prevention mechanism built into connector B (See page (c) Measure the resistance according to the value(s) in the table below. ).

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A26-4 (D2+) - A26-3 (D2-)

Always

1 MΩ or Higher

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Instrument Panel Wire

*4

Airbag Sensor Assembly

NG

REPLACE INSTRUMENT PANEL WIRE

OK

6.

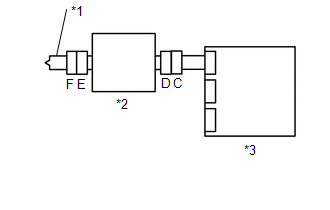

CHECK AIRBAG SENSOR ASSEMBLY

(a) Connect the instrument panel wire connectors to the airbag sensor assembly and spiral cable with sensor sub-assembly.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON, and wait for at least 60 seconds.

(d) Clear any DTCs stored in the memory (See page (e) Turn the ignition switch off. ).

(e) Turn the ignition switch off.

(f) Turn the ignition switch to ON, and wait for at least 60 seconds.

(g) Check for DTCs (See page OK: ).

OK:

DTC B1810 is not output.

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Airbag Sensor Assembly

HINT:

DTCs other than B1810 may be output at this time, but they are not related to this check.

Result

Result

Proceed to

NG

A

OK

B

A

REPLACE AIRBAG SENSOR ASSEMBLY

B

GO TO STEP 20

7.

CHECK CONNECTOR

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Check that the spiral cable with sensor sub-assembly connectors (on the horn button assembly side) are not damaged.

OK:

The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

NG

REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

OK

8.

CHECK CONNECTION OF CONNECTORS

(a) Check that the spiral cable with sensor sub-assembly connectors (on the horn button assembly side) are properly connected.

OK:

The connectors are properly connected.

NG

CONNECT CONNECTORS

OK

9.

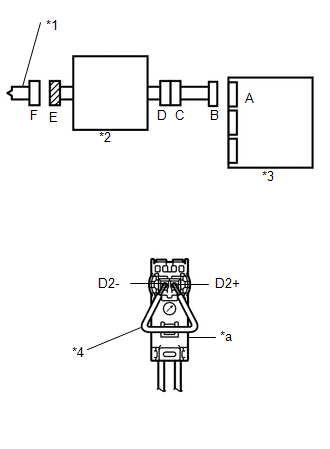

CHECK SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY (FOR OPEN)

(a) Disconnect the spiral cable with sensor sub-assembly connectors from the instrument panel wire and horn button assembly.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D2+ - D2-

Always

Below 1 Ω

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Airbag Sensor Assembly

*a

Color: Black

NG

REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

OK

10.

CHECK INSTRUMENT PANEL WIRE (FOR OPEN)

(a) Disconnect the instrument panel wire connector from the airbag sensor assembly.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A26-4 (D2+) - A26-3 (D2-)

Always

Below 1 Ω

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Instrument Panel Wire

*4

Airbag Sensor Assembly

Result

Result

Proceed to

NG

A

OK

B

A

REPLACE INSTRUMENT PANEL WIRE

B

GO TO STEP 19

11.

CHECK CONNECTOR

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Check that the spiral cable with sensor sub-assembly connectors (on the horn button assembly side) are not damaged.

OK:

The lock button is not disengaged, or the claw of the lock is not deformed or damaged.

NG

REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

OK

12.

CHECK CONNECTION OF CONNECTORS

(a) Check that the spiral cable with sensor sub-assembly connectors (on the horn button assembly side) are properly connected.

OK:

The connectors are properly connected.

NG

CONNECT CONNECTORS

OK

13.

CHECK SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY (TO GROUND)

(a) Disconnect the spiral cable with sensor sub-assembly connector from the instrument panel wire and horn button assembly.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D2+ - Body ground

Always

1 MΩ or Higher

D2- - Body ground

Always

1 MΩ or Higher

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Airbag Sensor Assembly

*a

Color: Black

NG

REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

OK

14.

CHECK INSTRUMENT PANEL WIRE (TO GROUND)

(a) Disconnect the instrument panel wire connector from the airbag sensor assembly.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A26-4 (D2+) - Body ground

Always

1 MΩ or Higher

A26-3 (D2-) - Body ground

Always

1 MΩ or Higher

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Instrument Panel Wire

*4

Airbag Sensor Assembly

Result

Result

Proceed to

NG

A

OK

B

A

REPLACE INSTRUMENT PANEL WIRE

B

GO TO STEP 19

15.

CHECK CONNECTOR

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Check that the spiral cable with sensor sub-assembly connectors (on the horn button assembly side) are not damaged.

OK:

The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

NG

REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

OK

16.

CHECK CONNECTION OF CONNECTORS

(a) Check that the spiral cable with sensor sub-assembly connectors (on the horn button assembly side) are properly connected.

OK:

The connectors are properly connected.

NG

CONNECT CONNECTORS

OK

17.

CHECK SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY (TO B+)

(a) Disconnect the spiral cable with sensor sub-assembly connectors from the instrument panel wire and horn button assembly.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

D2+ - Body ground

Ignition switch ON

Below 1 V

D2- - Body ground

Ignition switch ON

Below 1 V

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Airbag Sensor Assembly

*a

Color: Black

NG

REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

OK

18.

CHECK INSTRUMENT PANEL WIRE (TO B+)

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Disconnect the instrument panel wire connector from the airbag sensor assembly.

(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(e) Turn the ignition switch to ON.

(f) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

A26-4 (D2+) - Body ground

Ignition switch ON

Below 1 V

A26-3 (D2-) - Body ground

Ignition switch ON

Below 1 V

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Instrument Panel Wire

*4

Airbag Sensor Assembly

NG

REPLACE INSTRUMENT PANEL WIRE

OK

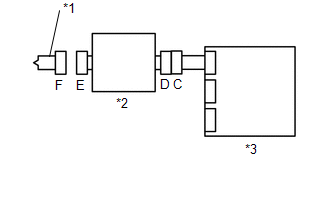

19.

REPLACE AIRBAG SENSOR ASSEMBLY

HINT:

If continuing from step 18, begin from (a). If continuing from any other step, begin from (c).

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Connect the connectors to the airbag sensor assembly.

(d) Using a service wire, connect D2+ and D2- of connector E.

NOTICE:

  • Twist the end of the service wire in order to insert it into the connector.
  • Do not forcibly insert the twisted service wire into the terminals of the connector when connecting.

(e) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(f) Turn the ignition switch to ON, and wait for at least 60 seconds.

(g) Clear any DTCs stored in the memory (See page (h) Turn the ignition switch off. ).

(h) Turn the ignition switch off.

(i) Turn the ignition switch to ON, and wait for at least 60 seconds.

(j) Check for DTCs (See page OK: ).

OK:

DTCs B1811, B1812 and B1813 are not output.

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Airbag Sensor Assembly

*4

Service Wire

*a

Color: Black

HINT:

DTCs other than B1811, B1812 or B1813 may be output at this time, but they are not related to this check.

NG

REPLACE AIRBAG SENSOR ASSEMBLY

OK

20.

CHECK HORN BUTTON ASSEMBLY (DRIVER SIDE SQUIB 2ND STEP)

HINT:

If continuing from step 19, begin from (c). If continuing from any other step, being from (a).

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Disconnect the service wire from connector E.

(d) Connect the connectors to the horn button assembly.

(e) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(f) Turn the ignition switch to ON, and wait for at least 60 seconds.

(g) Clear any DTCs stored in the memory (See page (h) Turn the ignition switch off. ).

(h) Turn the ignition switch off.

(i) Turn the ignition switch to ON, and wait for at least 60 seconds.

(j) Check for DTCs (See page OK: ).

OK:

DTCs B1810, B1811, B1812 and B1813 are not output.

Text in Illustration

*1

Driver Side Squib 2nd Step

*2

Spiral Cable with Sensor Sub-assembly

*3

Airbag Sensor Assembly

HINT:

DTCs other than B1810, B1811, B1812 or B1813 may be output at this time, but they are not related to this check.

OK

USE SIMULATION METHOD TO CHECK

NG

REPLACE HORN BUTTON ASSEMBLY

Short in Front Passenger Side Squib Circuit (B1805/52-B1808/52)
DESCRIPTION The front passenger side squib circuit consists of the airbag sensor assembly and the instrument panel passenger without door airbag assembly. The circuit instructs the SRS to deploy w ...

Seat Belt Buckle Switch LH Circuit Malfunction (B1656/38)
DESCRIPTION The seat belt buckle switch LH circuit consists of the airbag sensor assembly and the front seat inner belt assembly LH (seat belt buckle switch LH). DTC B1655/37 is stored when a malf ...

Other materials:

Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier
DESCRIPTION The navigation receiver assembly sends a sound signal to the stereo component amplifier assembly via this circuit. The sound signal that has been sent is amplified by the stereo component amplifier assembly, and then is sent to the speakers. If there is an open or short in the cir ...

Data List / Active Test
DATA LIST / ACTIVE TEST 1. DATA LIST HINT: Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals ...

Rear Right Sensor Malfunction (C1AE9)
DESCRIPTION The No. 1 ultrasonic sensor (rear corner sensor RH) is installed on the rear bumper. The ECU detects obstacles based on signals received from the No. 1 ultrasonic sensor (rear corner sensor RH). If the No. 1 ultrasonic sensor (rear corner sensor RH) has an open circuit or other ma ...

© 2011-2020 Copyright www.ttguide.net
