Toyota Tacoma 2015-2018 Service Manual: Parts Location

PARTS LOCATION

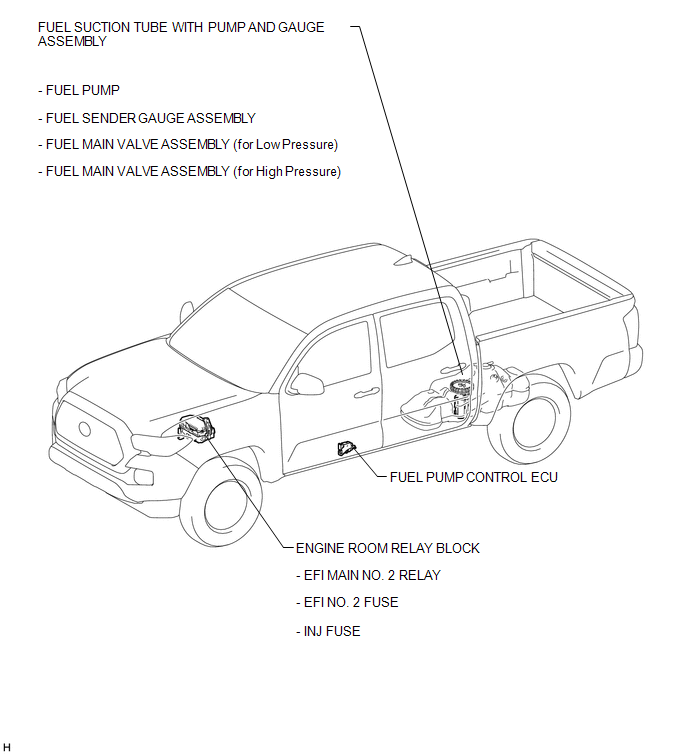

ILLUSTRATION

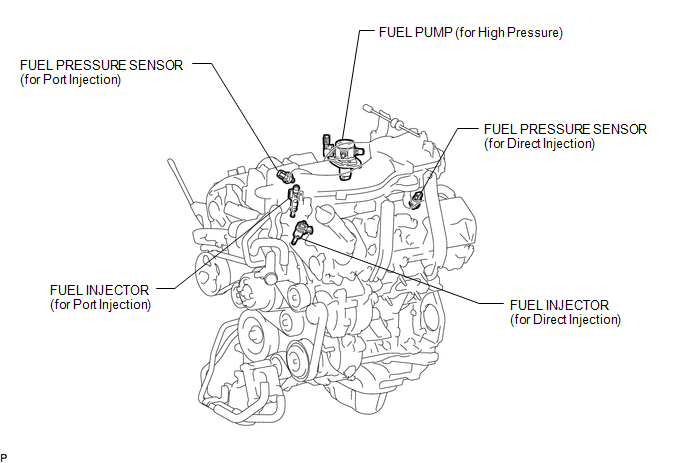

ILLUSTRATION

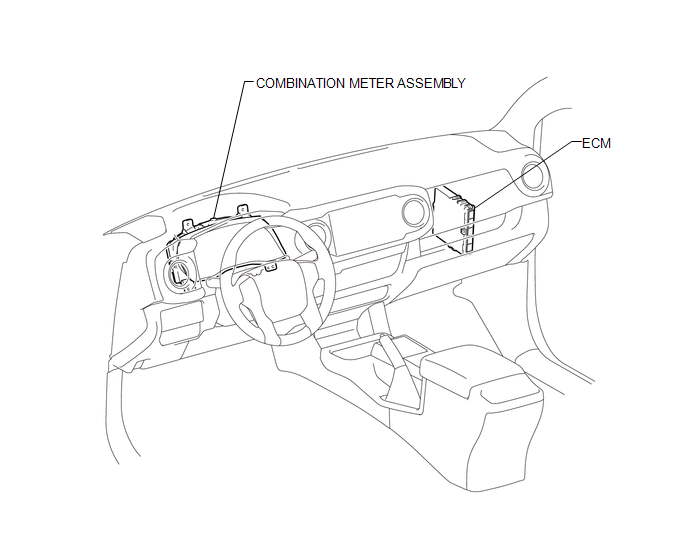

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

System Diagram
Precaution
PRECAUTION 1. PRECAUTION (a) Before starting work on the fuel system, including inspections and repairs, disconnect the cable from the negative (-) battery terminal. (b) Do not smoke or work near ...

System Diagram
SYSTEM DIAGRAM 1. HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM 2. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM ...
