Toyota Tacoma 2015-2018 Service Manual: Front Blower Resistor

Inspection

INSPECTION

PROCEDURE

1. INSPECT BLOWER RESISTOR

(a) Check the resistance.

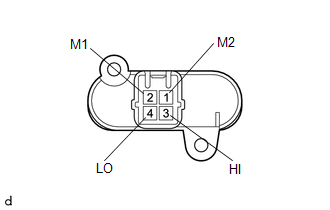

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified

4 (M2) - 2 (HI)

20°C (68°F)

0.369 to 0.451 Ω

3 (M1) - 2 (HI)

1.16 to 1.42 Ω

1 (LO) - 2 (HI)

2.21 to 2.70 Ω

If the result is not as specified, replace the blower resistor.
