DTC COMBINATION TABLE

HOW TO INTERPRET COMMUNICATION DTCS (DTCS THAT START WITH U)

(a) If a CAN communication error cannot be reproduced, determine the suspected malfunctioning part using the DTCs stored in ECUs that are connected to the CAN buses by following the procedure below.

HINT:

Communication DTCs (DTCs that start with U) indicate a communication error between the ECU that stores the DTC and the ECU that is indicated by the DTC.

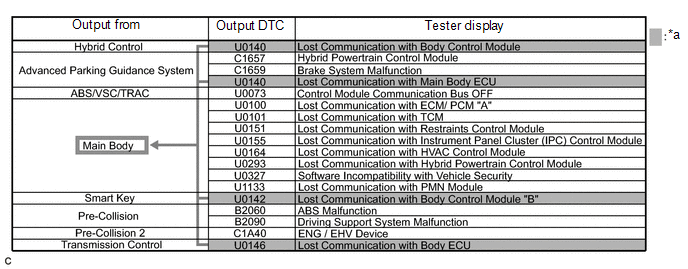

(1) If multiple ECUs store a communication DTC for a particular ECU, a communication stop of the ECU is suspected.

*a

Items to be Checked

-

-

NOTICE:

  • This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.
  • Even though a DTC title may indicate a communication error with a specific ECU, the ECU name used in the DTC name on the Techstream may differ depending on the ECU that stores the DTC. (Regarding output DTCs, refer to DTC Table by ECU.)

    Click here

HINT:

As multiple ECUs indicate a communication stop with the main body ECU, the possibility of a communication stop of the main body ECU is high.

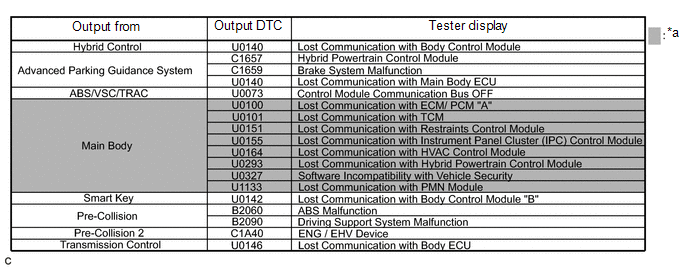

(2) If almost all of the communication DTCs of an ECU are stored, a communication stop of the ECU is suspected.

*a

Items to be Checked

-

-

NOTICE:

  • This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.
  • Even though a DTC title may indicate a communication error with a specific ECU, the ECU name used in the DTC name on the Techstream may differ depending on the ECU that stores the DTC.

    Click here

HINT:

  • If almost all of the DTCs of the main body ECU are stored, the possibility of a communication stop of the main body ECU is high.
  • When a CAN communication error occurs, many DTCs are output. DTCs other than communication error DTCs (such as DTCs that start with C or B) and communication DTCs for the ABS system are important DTCs, however it may be easier to determine the malfunctioning part by examining the overall situation without considering these DTCs.

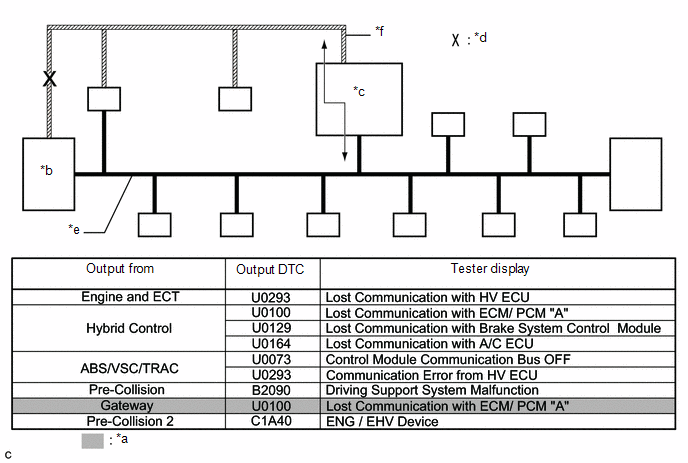

(b) To help determine the part of the sub bus that has a communication error, prioritize the communication stop DTCs stored in the gateway function equipped ECU.

*a

Items to be Checked

*b

ECM

*c

Gateway function equipped ECU

*d

Location of malfunction

*e

Central bus

*f

Sub bus

NOTICE:

This DTC table is from another model, and is only used here to show the ECUs connected to both a central bus and a sub bus. It shows DTCs output when there is an open in the main bus lines for the ECM on the sub bus. This table does not show DTCs applicable to this vehicle.

HINT:

  • As gateway function equipped ECUs (sub bus monitor ECU) monitor signals from all ECUs that are connected to sub buses, gateway function equipped ECUs can detect ECUs with a communication stop more accurately.
  • When there is a communication stop for the gateway function equipped ECU (gateway), communication with ECUs connected to other buses such as the central bus stops. Therefore, communication DTCs for ECUs connected to other buses are also stored.

(c) When any of the following malfunctions occurs, many DTCs are likely to be output from many ECUs. Because of this, it may be difficult to determine the probable malfunctioning part.

  • Short between CAN lines (CANH and CANL)
  • Short between a CAN line (CANH or CANL) and ground
  • Short between a CAN line (CANH or CANL) and +B
  • Open in a CAN branch line (CANH or CANL) of an ECU or sensor
  • Open in a CAN main bus line (CANH or CANL) between 2 ECUs that have a terminating resistor

DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 2, PAST COMMUNICATION ERROR)

(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 2 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.

HINT:

  • Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
  • If there is an open in a CAN branch line or a communication stop in currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the open branch line is not responding (the ECU or sensor has a background color of red).
  • ○: DTC is output.
  • -: DTC is not output.
  • *1: DTC U0073 may be stored when communication is lost.
  • *2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
  • If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
  • If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Center Airbag Sensor Communication Stop Mode

Air Conditioning Amplifier Communication Stop Mode

Central Gateway ECU Communication Stop Mode

4WD Control ECU Communication Stop Mode

Bus 2

Airbag Sensor Assembly

-

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

ECM

U010087

U0100

-

-

-

-

U012287

U0122

-

-

-

-

U010487

U0104

-

-

-

4 Wheel Drive Control ECU

U0100

-

-

-

U0122

-

-

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

-

-

-

U0114

-

-

-

U0123

-

-

-

U0124

-

-

-

U0126

-

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

-

U0101

-

-

-

-

U0120

-

-

-

-

U0151

-

-

-

U0155

-

-

-

-

U023A

-

-

-

U0327

-

-

-

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

-

-

-

U0142

-

-

-

-

U0155

-

-

-

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

-

-

-

U0140

-

-

-

-

U0155

-

-

-

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

-

-

-

Combination Meter Assembly

U0100

-

-

-

-

U0129

-

-

-

-

U0142

-

-

-

-

U0151

-

-

-

U0163

-

-

-

U023A

-

-

-

U1104

-

-

-

Spiral Cable with Sensor Sub-assembly

-

-

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Clearance Warning ECU Assembly

U0100

-

-

-

U0101

-

-

-

U0142

-

-

-

U0155

-

-

-

Forward Recognition Camera

U0100

-

-

-

U0101

-

-

-

U0123

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

U0155

-

-

-

U0235

-

-

-

-

Millimeter Wave Radar Sensor Assembly

U0100

-

-

-

U0125

-

-

U0126

-

-

-

U0129

-

-

-

U023A

-

-

-

-

Blind Spot Monitor Sensor LH

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

U1110

-

-

-

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Skid Control ECU Communication Stop Mode

Main Body ECU Communication Stop Mode Mode

Certification ECU Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

Bus 2

Airbag Sensor Assembly

-

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

-

U0142

-

-

-

U0155

-

-

-

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

ECM

U010087

U0100

-

-

-

U012287

U0122

-

-

-

U010487

U0104

-

-

-

-

4 Wheel Drive Control ECU

U0100

-

-

-

-

U0122

-

-

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

-

-

U0114

-

-

-

U0123

-

-

-

U0124

-

-

-

U0126

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

U0151

-

-

-

U0155

-

-

-

U023A

-

-

-

U0327

-

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

-

-

U0142

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

-

-

U0140

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

-

-

Combination Meter Assembly

U0100

-

-

-

-

U0129

-

-

-

U0142

-

-

-

U0151

-

-

-

-

U0163

-

-

-

-

U023A

-

-

-

-

U1104

-

-

-

-

Spiral Cable with Sensor Sub-assembly

-

-

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Clearance Warning ECU Assembly

U0100

-

-

-

-

U0101

-

-

-

-

U0142

-

-

-

U0155

-

-

-

-

Forward Recognition Camera

U0100

-

-

-

-

U0101

-

-

-

-

U0123

-

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

U0155

-

-

-

-

U0235

-

-

-

-

Millimeter Wave Radar Sensor Assembly

U0100

-

-

-

-

U0125

-

-

-

-

U0126

-

-

-

U0129

-

-

-

U023A

-

-

-

-

Blind Spot Monitor Sensor LH

U0100

-

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

-

-

-

-

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

-

U1110

-

-

-

-

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Tire Pressure Monitor ECU Communication Stop Mode

Bus 2

Airbag Sensor Assembly

-

-

Air Conditioning Amplifier Assembly

U0100

-

U0142

-

U0155

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

ECM

U010087

U0100

-

U012287

U0122

-

U010487

U0104

-

4 Wheel Drive Control ECU

U0100

-

U0122

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

U0114

-

U0123

-

U0124

-

U0126

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

U0101

-

U0120

-

U0151

-

U0155

-

U023A

-

U0327

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

U0142

-

U0155

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

U0140

-

U0155

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

Combination Meter Assembly

U0100

-

U0129

-

U0142

-

U0151

-

U0163

-

U023A

-

U1104

-

Spiral Cable with Sensor Sub-assembly

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

Clearance Warning ECU Assembly

U0100

-

U0101

-

U0142

-

U0155

-

Forward Recognition Camera

U0100

-

U0101

-

U0123

-

U0126

-

U0129

-

U0142

-

U0155

-

U0235

-

Millimeter Wave Radar Sensor Assembly

U0100

-

U0125

-

U0126

-

U0129

-

U023A

-

Blind Spot Monitor Sensor LH

U0100

-

U0126

-

U0129

-

U0142

-

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

-

U0129

-

U0140

-

U0155

-

U1110

-

-

Trouble Mode

Open in CAN main line(s)

Output ECU

Output DTC

ECM Communication Stop Mode

No. 1 CAN Junction Connector to No. 2 CAN Junction Connector

Combination Meter ECU Communication Stop Mode

Bus 2

Airbag Sensor Assembly

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

U0142

-

-

U0155

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U010087

U0100

-

-

U012287

U0122

-

-

U010487

U0104

-

-

4 Wheel Drive Control ECU

U0100

-

-

U0122

-

-

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

-

U0114

-

-

-

U0123

-

-

-

U0124

-

-

-

U0126

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

U0101

-

U0120

-

-

-

U0151

-

-

U0155

-

-

U023A

-

-

U0327

-

-

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

U0142

-

-

-

U0155

-

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

U0140

-

-

-

U0155

-

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

Combination Meter Assembly

U0100

U0129

-

U0142

-

-

U0151

-

U0163

-

U023A

-

U1104

-

Spiral Cable with Sensor Sub-assembly

-

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Clearance Warning ECU Assembly

U0100

-

-

U0101

-

-

U0142

-

-

U0155

-

Forward Recognition Camera

U0100

-

-

U0101

-

-

U0123

-

-

-

U0126

-

-

U0129

-

-

-

U0142

-

-

U0155

-

U0235

-

-

-

Millimeter Wave Radar Sensor Assembly

U0100

-

-

U0125

-

-

-

U0126

-

-

U0129

-

-

-

U023A

-

-

-

Blind Spot Monitor Sensor LH

U0100

-

-

U0126

-

-

U0129

-

-

-

U0142

-

-

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

-

-

U0129

-

-

-

U0140

-

-

U0155

-

U1110

-

-

-

-

Trouble Mode

CAN bus lines short circuit or short to GND

Output ECU

Output DTC

CANH to CANL

CANH Short to Ground

CANL Short to Ground

Bus 2

Airbag Sensor Assembly

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

U0142

U0155

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U010087

U0100

U012287

U0122

U010487

U0104

4 Wheel Drive Control ECU

U0100

U0122

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

U0114

U0123

U0124

U0126

Main Body ECU (Multiplex Network Body ECU)

U0100

U0101

U0120

U0151

U0155

U023A

U0327

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

U0142

U0155

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

U0140

U0155

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

Combination Meter Assembly

U0100

U0129

U0142

U0151

U0163

U023A

U1104

Spiral Cable with Sensor Sub-assembly

-

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Clearance Warning ECU Assembly

U0100

U0101

U0142

U0155

Forward Recognition Camera

U0100

U0101

U0123

U0126

U0129

U0142

U0155

U0235

-

-

-

Millimeter Wave Radar Sensor Assembly

U0100

U0125

U0126

U0129

U023A

-

-

-

Blind Spot Monitor Sensor LH

U0100

U0126

U0129

U0142

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

U0129

U0140

U0155

U1110

-

-

-

DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 3, PAST COMMUNICATION ERROR)

(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 3 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.

HINT:

  • Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
  • If there is an open in a CAN branch line or a communication stop in currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the open branch line is not responding (the ECU or sensor has a background color of red).
  • ○: DTC is output.
  • -: DTC is not output.
  • *1: DTC U0073 may be stored when communication is lost.
  • *2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
  • If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
  • If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Navigation Receiver Assembly Communication Stop Mode

Radio Receiver Assembly Communication Stop Mode

Bus 2

Airbag Sensor Assembly

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

U0142

-

-

U0155

-

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

ECM

U010087

U0100

-

-

U012287

U0122

-

-

U010487

U0104

-

-

4 Wheel Drive Control ECU

U0100

-

-

U0122

-

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

-

U0114

-

-

U0123

-

-

U0124

-

-

U0126

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

U0101

-

-

U0120

-

-

U0151

-

-

U0155

-

-

U023A

-

-

U0327

-

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

-

U0142

-

-

U0155

-

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

-

U0140

-

-

U0155

-

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

-

Combination Meter Assembly

U0100

-

-

U0129

-

-

U0142

-

-

U0151

-

-

U0163

U023A

-

-

U1104

-

-

Spiral Cable with Sensor Sub-assembly

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Clearance Warning ECU Assembly

U0100

-

-

U0101

-

-

U0142

-

-

U0155

-

-

Forward Recognition Camera

U0100

-

-

U0101

-

-

U0123

-

-

U0126

-

-

U0129

-

-

U0142

-

-

U0155

-

-

U0235

-

-

Millimeter Wave Radar Sensor Assembly

U0100

-

-

U0125

-

-

U0126

-

-

U0129

-

-

U023A

-

-

Blind Spot Monitor Sensor LH

U0100

-

-

U0126

-

-

U0129

-

-

U0142

-

-

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

U0129

U0140

U0155

U1110

-

Trouble Mode

Open in CAN main line(s)

Output ECU

Output DTC

Central Gateway ECU (Network Gateway ECU) (CA3H and CA3L Terminal)

Central Gateway ECU (Network Gateway ECU) (CAYH and CAYL Terminal)

Bus 2

Airbag Sensor Assembly

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

U0142

-

-

U0155

-

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

ECM

U010087

U0100

-

-

U012287

U0122

-

-

U010487

U0104

-

-

4 Wheel Drive Control ECU

U0100

-

-

U0122

-

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

-

U0114

-

-

U0123

-

-

U0124

-

-

U0126

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

U0101

-

-

U0120

-

-

U0151

-

-

U0155

-

-

U023A

-

-

U0327

-

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

-

U0142

-

-

U0155

-

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

-

U0140

-

-

U0155

-

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

-

Combination Meter Assembly

U0100

-

-

U0129

-

-

U0142

-

-

U0151

-

-

U0163

-

U023A

-

-

U1104

-

-

Spiral Cable with Sensor Sub-assembly

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Clearance Warning ECU Assembly

U0100

-

-

U0101

-

-

U0142

-

-

U0155

-

-

Forward Recognition Camera

U0100

-

-

U0101

-

-

U0123

-

-

U0126

-

-

U0129

-

-

U0142

-

-

U0155

-

-

U0235

-

-

Millimeter Wave Radar Sensor Assembly

U0100

-

-

U0125

-

-

U0126

-

-

U0129

-

-

U023A

-

-

Blind Spot Monitor Sensor LH

U0100

-

-

U0126

-

-

U0129

-

-

U0142

-

-

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

-

U0129

-

U0140

-

U0155

-

U1110

-

-

Trouble Mode

CAN bus lines short circuit or short to GND

Output ECU

Output DTC

CANH to CANL

CANH Short to Ground

CANL Short to Ground

Bus 2

Airbag Sensor Assembly

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U010087

U0100

-

-

-

U012287

U0122

-

-

-

U010487

U0104

-

-

-

4 Wheel Drive Control ECU

U0100

-

-

-

U0122

-

-

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

-

-

U0114

-

-

-

U0123

-

-

-

U0124

-

-

-

U0126

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0151

-

-

-

U0155

-

-

-

U023A

-

-

-

U0327

-

-

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

-

-

Combination Meter Assembly

U0100

-

-

-

U0129

-

-

-

U0142

-

-

-

U0151

-

-

-

U0163

U023A

-

-

-

U1104

-

-

-

Spiral Cable with Sensor Sub-assembly

-

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Clearance Warning ECU Assembly

U0100

-

-

-

U0101

-

-

-

U0142

-

-

-

U0155

-

-

-

Forward Recognition Camera

U0100

-

-

-

U0101

-

-

-

U0123

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

U0155

-

-

-

U0235

-

-

-

Millimeter Wave Radar Sensor Assembly

U0100

-

-

-

U0125

-

-

-

U0126

-

-

-

U0129

-

-

-

U023A

-

-

-

Blind Spot Monitor Sensor LH

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

U0129

U0140

U0155

U1110

DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 5, PAST COMMUNICATION ERROR)

(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 5 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.

HINT:

  • Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
  • If there is an open in a CAN branch line or a communication stop in currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the open branch line is not responding (the ECU or sensor has a background color of red).
  • ○: DTC is output.
  • -: DTC is not output.
  • *1: DTC U0073 may be stored when communication is lost.
  • *2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
  • If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
  • If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Clearance Warning ECU Communication Stop Mode

Front Camera Module Communication Stop Mode

Millimeter Wave Radar Sensor Communication Stop Mode

Blind Spot Monitor Sensor Communication Stop Mode

Bus 2

Airbag Sensor Assembly

-

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

-

U0142

-

-

-

-

U0155

-

-

-

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

ECM

U010087

U0100

-

-

-

-

U012287

U0122

-

-

-

-

U010487

U0104

-

-

-

4 Wheel Drive Control ECU

U0100

-

-

-

-

U0122

-

-

-

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

-

-

-

U0114

-

-

-

-

U0123

-

-

-

-

U0124

-

-

-

-

U0126

-

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

-

U0101

-

-

-

-

U0120

-

-

-

-

U0151

-

-

-

-

U0155

-

-

-

-

U023A

-

-

-

U0327

-

-

-

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

-

-

-

U0142

-

-

-

-

U0155

-

-

-

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

-

-

-

U0140

-

-

-

-

U0155

-

-

-

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

-

-

-

Combination Meter Assembly

U0100

-

-

-

-

U0129

-

-

-

-

U0142

-

-

-

-

U0151

-

-

-

U0163

-

-

-

U023A

-

-

-

U1104

-

-

-

Spiral Cable with Sensor Sub-assembly

-

-

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Clearance Warning ECU Assembly

U0100

-

-

-

U0101

-

-

-

U0142

-

-

-

U0155

-

-

-

Forward Recognition Camera

U0100

-

-

-

U0101

-

-

-

U0123

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

U0155

-

-

-

U0235

-

-

Millimeter Wave Radar Sensor Assembly

U0100

-

-

-

U0125

-

-

-

U0126

-

-

-

-

U0129

-

-

-

U023A

-

-

Blind Spot Monitor Sensor LH

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

-

-

-

-

U0129

-

-

-

-

U0140

-

-

-

-

U0155

-

-

-

-

U1110

-

-

-

-

Trouble Mode

Open in CAN main line(s)

Output ECU

Output DTC

Central Gateway ECU (Network Gateway ECU) (CA5H and CA5L Terminal)

No. 6 CAN Junction Connector to No. 5 CAN Junction Connector

No. 5 CAN Junction Connector to No. 4 CAN Junction Connector

Central Gateway ECU (Network Gateway ECU) (CAXH and CAXL Terminal)

Bus 2

Airbag Sensor Assembly

-

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

-

U0142

-

-

-

-

U0155

-

-

-

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

ECM

U010087

U0100

-

-

-

-

U012287

U0122

-

-

-

-

U010487

U0104

-

-

4 Wheel Drive Control ECU

U0100

-

-

-

-

U0122

-

-

-

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

-

-

-

U0114

-

-

-

-

U0123

-

-

-

-

U0124

-

-

-

-

U0126

-

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

-

U0101

-

-

-

-

U0120

-

-

-

-

U0151

-

-

-

-

U0155

-

-

-

-

U023A

-

-

-

U0327

-

-

-

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

-

-

-

U0142

-

-

-

-

U0155

-

-

-

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

-

-

-

U0140

-

-

-

-

U0155

-

-

-

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

-

-

-

Combination Meter Assembly

U0100

-

-

-

-

U0129

-

-

-

-

U0142

-

-

-

-

U0151

-

-

-

-

U0163

-

-

-

-

U023A

-

-

-

U1104

-

-

Spiral Cable with Sensor Sub-assembly

-

-

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Clearance Warning ECU Assembly

U0100

-

-

-

U0101

-

-

-

U0142

-

-

-

U0155

-

-

-

Forward Recognition Camera

U0100

-

-

-

U0101

-

-

-

U0123

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

U0155

-

-

-

U0235

-

-

-

Millimeter Wave Radar Sensor Assembly

U0100

-

-

U0125

-

-

U0126

-

-

U0129

-

-

U023A

-

-

-

Blind Spot Monitor Sensor LH

U0100

-

U0126

-

U0129

-

U0142

-

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

-

-

-

-

U0129

-

-

-

-

U0140

-

-

-

-

U0155

-

-

-

-

U1110

-

-

-

-

Trouble Mode

CAN bus lines short circuit or short to GND

Output ECU

Output DTC

CANH to CANL

CANH Short to Ground

CANL Short to Ground

Bus 2

Airbag Sensor Assembly

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U010087

U0100

-

-

-

U012287

U0122

-

-

-

U010487

U0104

4 Wheel Drive Control ECU

U0100

-

-

-

U0122

-

-

-

Brake Booster Assembly (Skid Control ECU) or Brake Actuator Assembly (Skid Control ECU)*1

U0100

-

-

-

U0114

-

-

-

U0123

-

-

-

U0124

-

-

-

U0126

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0151

-

-

-

U0155

-

-

-

U023A

U0327

-

-

-

Certification ECU (Smart Key ECU Assembly) (Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly) (Start Function)

U0100

-

-

-

Combination Meter Assembly

U0100

-

-

-

U0129

-

-

-

U0142

-

-

-

U0151

-

-

-

U0163

-

-

-

U023A

U1104

Spiral Cable with Sensor Sub-assembly

-

-

-

-

Door Control and Tire Pressure Monitoring System Receiver Assembly

U0129

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Clearance Warning ECU Assembly

U0100

U0101

U0142

U0155

Forward Recognition Camera

U0100

U0101

U0123

U0126

U0129

U0142

U0155

U0235

Millimeter Wave Radar Sensor Assembly

U0100

U0125

U0126

U0129

U023A

Blind Spot Monitor Sensor LH

U0100

U0126

U0129

U0142

Bus 3

Navigation Receiver Assembly or Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

U1110

Utility
UTILITY INITIALIZE THE CONNECTION INFORMATION OF A GATEWAY FUNCTION EQUIPPED ECU (BUS MONITOR ECU) (a) Connect the Techstream to the DLC3. (b) Turn the ignition switch to ON. (c) Turn the Techst ...

Data List / Active Test
DATA LIST / ACTIVE TEST NOTICE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether ...

Other materials:

Rear Left Center Sensor Malfunction (C1AE7)
DESCRIPTION The No. 1 ultrasonic sensor (rear center sensor LH) is installed on the rear bumper. The ECU detects obstacles based on signals received from the No. 1 ultrasonic sensor (rear center sensor LH). If the No. 1 ultrasonic sensor (rear center sensor LH) has an open circuit or other ma ...

Short to GND in Outer Mirror Indicator(Master) (C1AB2)
DESCRIPTION This DTC is stored when the blind spot monitor sensor LH detects a ground short in the blind spot monitor indicator LH. DTC Code DTC Detection Condition Trouble Area C1AB2 With the blind spot monitor main switch assembly (w ...

Installation
INSTALLATION PROCEDURE 1. INSTALL POWER STEERING LINK (a) Insert the power steering link into the vehicle in the order shown in the illustration. Install in this Direction (1) Install in this Direction (2) (b) Temporarily install the po ...

© 2011-2020 Copyright www.ttguide.net
