Toyota Tacoma 2015-2018 Service Manual: Components

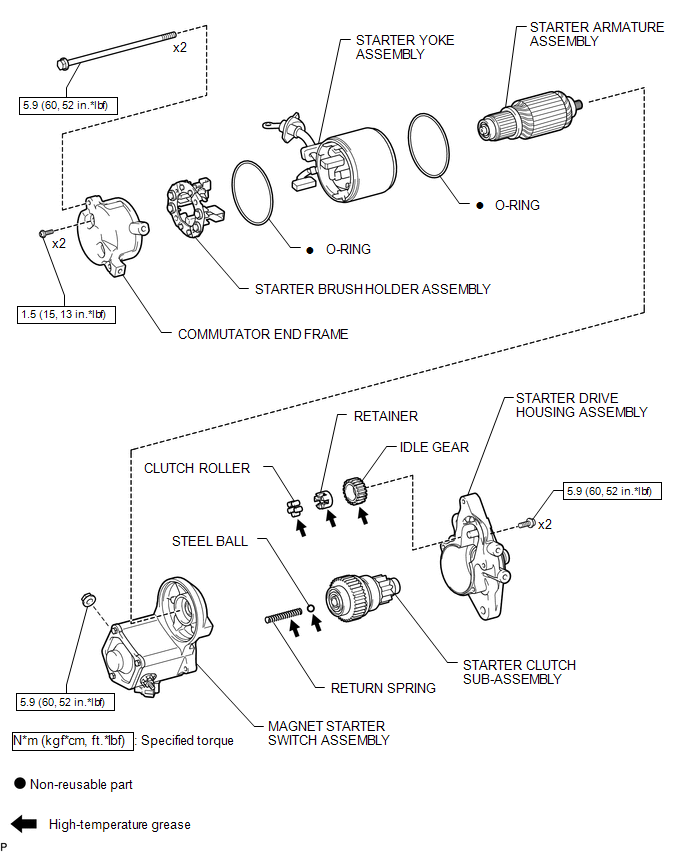

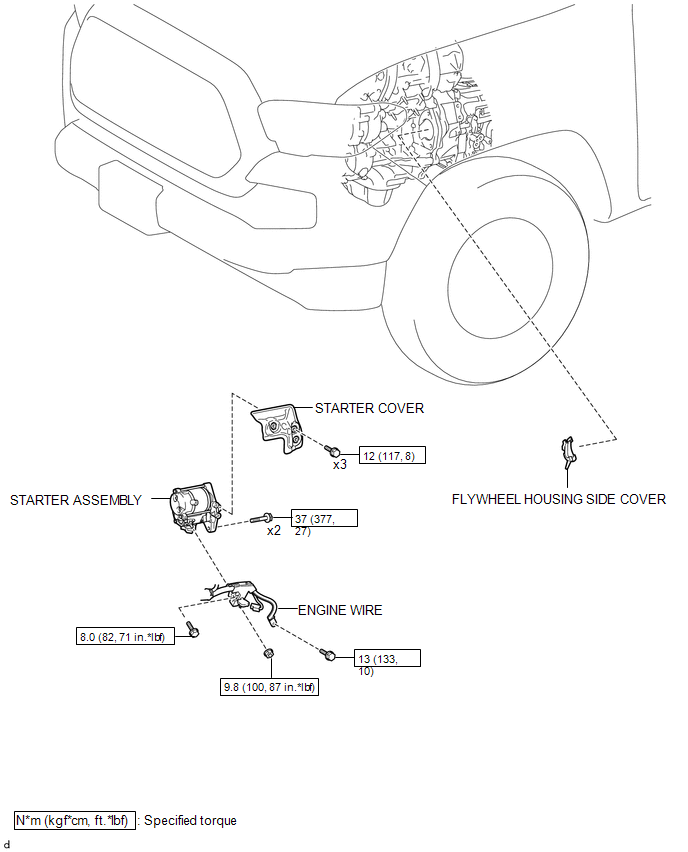

COMPONENTS

ILLUSTRATION

ILLUSTRATION

ILLUSTRATION

Disassembly
Starter
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE STARTER YOKE ASSEMBLY (a) Remove the nut and disconnect the lead wire from terminal C. (b) Remove the 2 bolts. ...
