Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

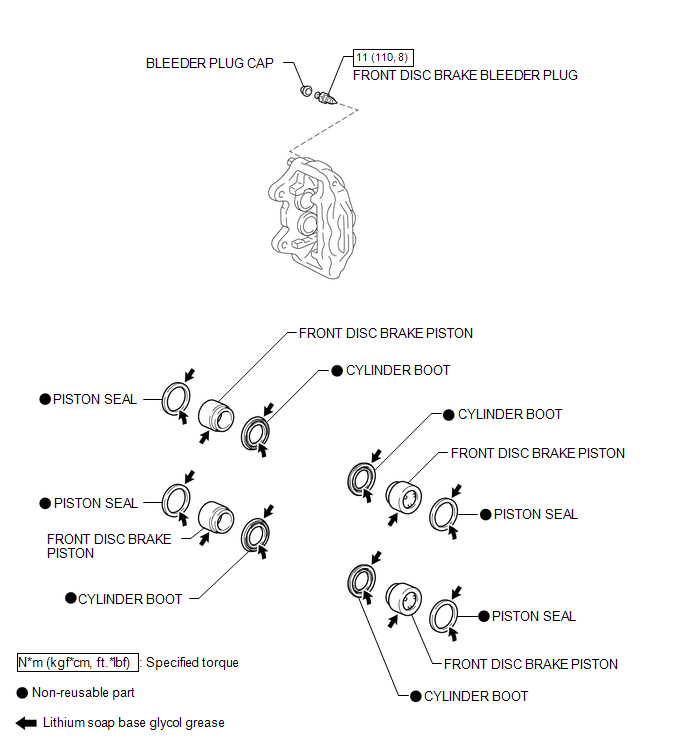

ILLUSTRATION

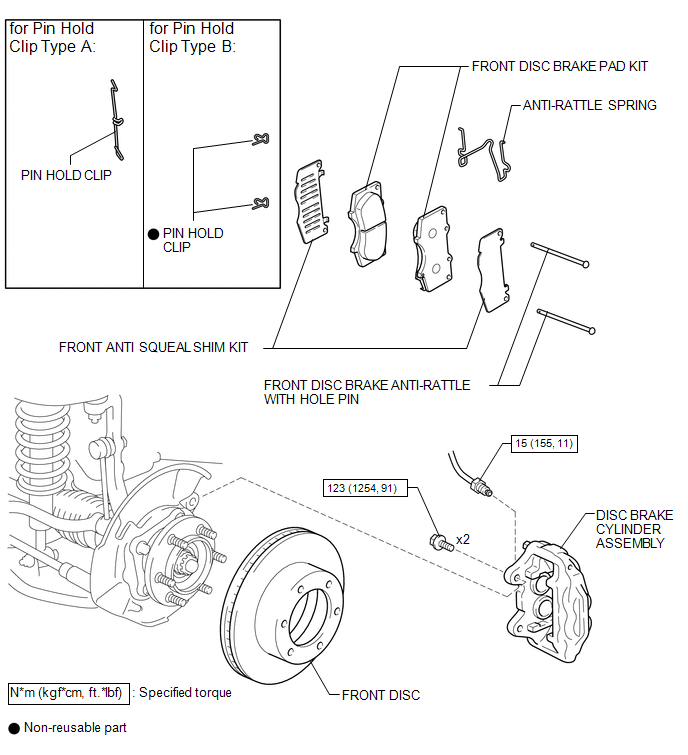

ILLUSTRATION

ILLUSTRATION

Disassembly
Front Brake
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE CYLINDER BOOT (a) Using a screwdriver, remove the 4 cylinder boots from the caliper. 2. REMOVE FRONT DISC BRAKE PISTON (a) Prepare a wooden plate to hold the p ...
