Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

ILLUSTRATION

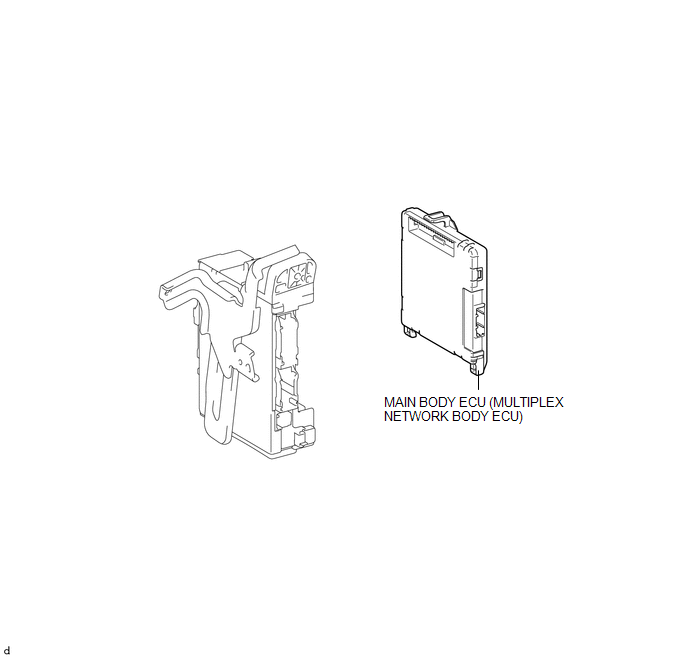

ILLUSTRATION

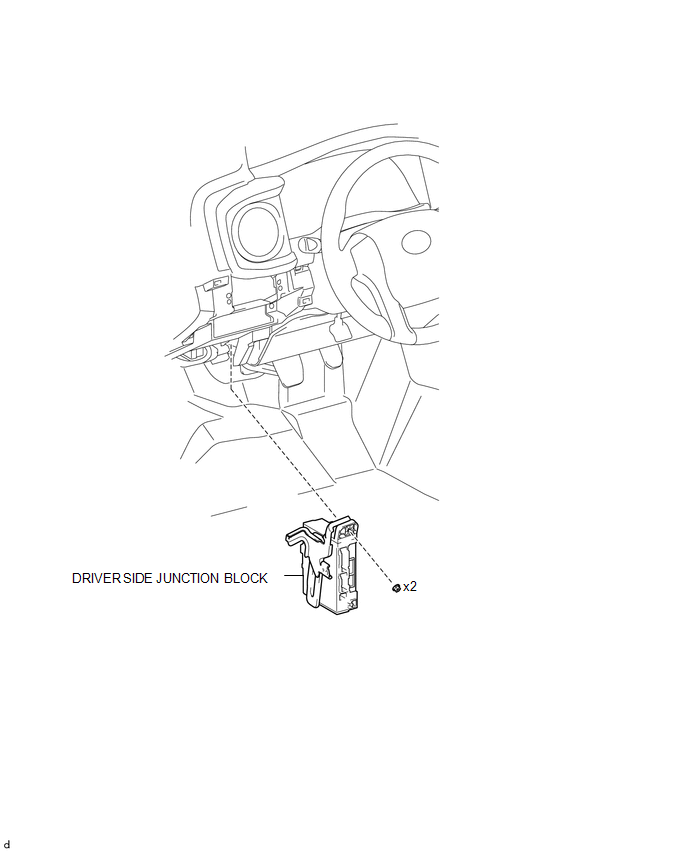

ILLUSTRATION

Installation
Main Body Ecu
...

Installation
INSTALLATION PROCEDURE 1. INSTALL MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) NOTICE: Make sure that the connecting surfaces are free of foreign matter. Do not touch the main body EC ...

Other materials:

Installation
INSTALLATION CAUTION / NOTICE / HINT CAUTION: Be sure to perform this procedure with several people as the transfer assembly is very heavy. PROCEDURE 1. INSTALL TRANSFER CASE LOWER PROTECTOR (a) Install the transfer case lower protector with the 4 bolts. Torque: 18 N·m {184 kgf·cm, 13 f ...

Check Bus 3 Line for Short to GND
DESCRIPTION There may be a short circuit between one of the CAN bus lines and GND when there is no resistance between terminal 6 (CA3H) of the central gateway ECU (network gateway ECU) and terminal 4 (CG) of the DLC3, or terminal 21 (CA3L) of the central gateway ECU (network gateway ECU) and ...

Tire Pressure Monitor ECU Communication Stop Mode
DESCRIPTION Detection Item Symptom Trouble Area Tire Pressure Monitor ECU Communication Stop Mode Either condition is met: Communication stop for "Tire Pressure2" is indicated on the "Communication Bus C ...
