Toyota Tacoma 2015-2018 Service Manual: Components

COMPONENTS

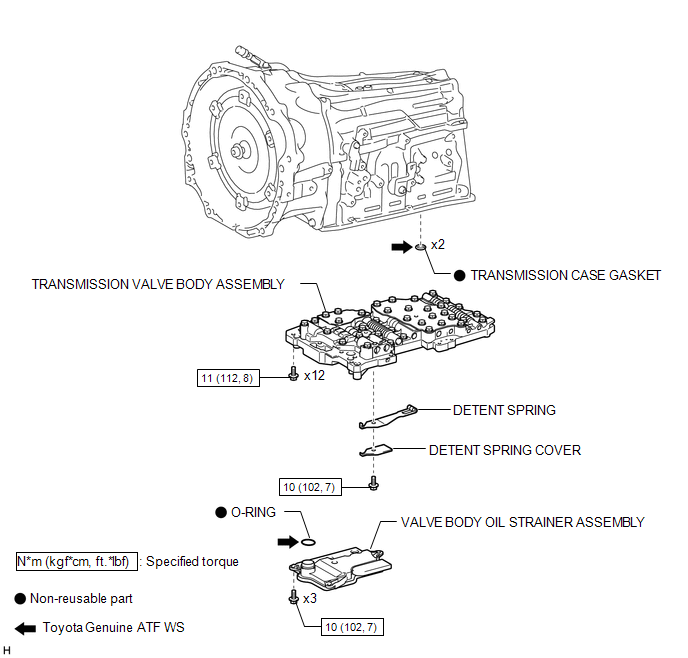

ILLUSTRATION

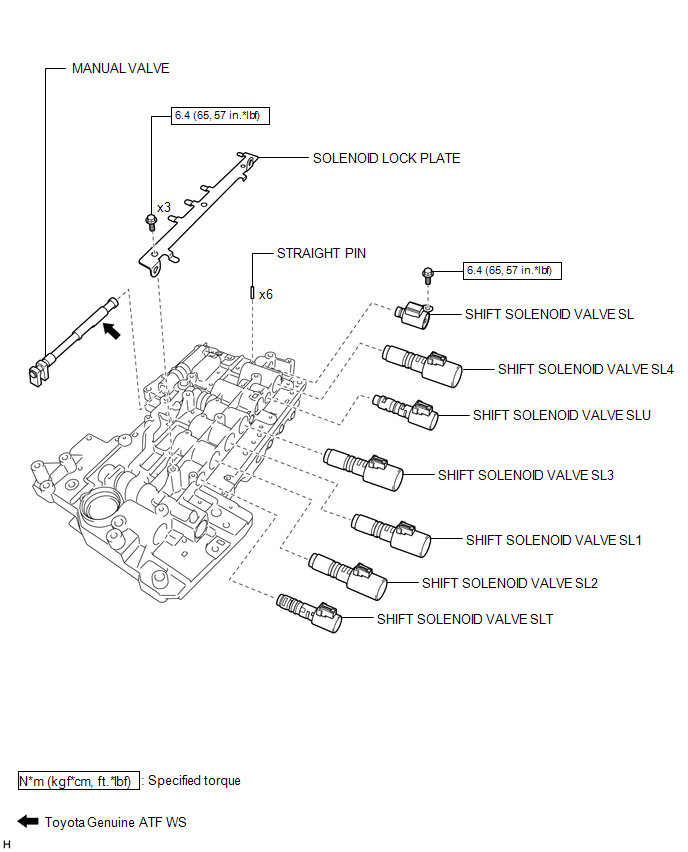

ILLUSTRATION

ILLUSTRATION

Removal
Valve Body Assembly
...

Removal
REMOVAL PROCEDURE 1. DISCONNECT TRANSMISSION WIRE (See page ) 2. REMOVE VALVE BODY OIL STRAINER ASSEMBLY (a) Remove the 3 bolts and valve body oil strainer assembly from the trans ...
